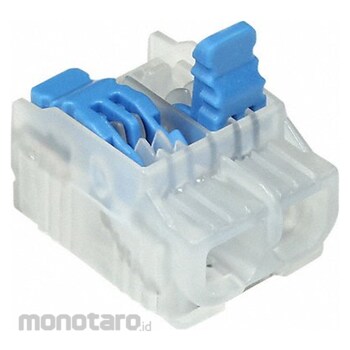

Ideal Lever Wire Connector
#Grup produk P109809368
Sebelum PPN:
Rp1.399.900 - Rp5.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121409 |
|---|---|
| Color | Blue |
| Contact Material | Copper |
| Current (A) | 20 |
| For Conductor Material | Copper |
| For Max. Wire Size - Solid (AWG) | 12 |
| For Max. Wire Size - Stranded (AWG) | 12 |
| For Min. Wire Size - Solid (AWG) | 24 |
| For Min. Wire Size - Stranded (AWG) | 24 |
| Housing Material | Polycarbonate |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Overall Height (inch) | 0.41 |
| Overall Width (inch) | 0.77 |
| RohS Compliant | Yes |
| Standards | CE; cUL; IEC/EN; RoHS; UL |
| Strip Length (inch) | 7/16 |
| Ul 94 Flammability Rating | V-2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Lever Wire Connector Color Blue For Conductor Material Copper For Minimum Wire Size - Stranded 24 AWG For Maximum Wire Size - Stranded 12 AWG Housing Material Polycarbonate Maximum Operating Temperature 221 Degrees F Maximum Voltage 600 V Overall Height 0.41 in Overall Length 1.23 in Overall Width 0.77 in Connector Type 5 Port UL 94 Flammability Rating V-2 Number of Ports 5 RoHS Compliant Yes Standards CE cUL IEC/EN RoHS UL Contact Material Copper Current 20 AUlasan Produk
