YELLOW JACKET Interchangeable Head Torque Wrench
#Grup produk P109803212
Spesifikasi
| UNSPSC | 27111715 |
|---|---|
| Calibration Certificate Included | Yes |
| Clockwise Accuracy | +/-4% |
| Corrosion Resistant | No |
| Counterclockwise Accuracy | +/-4% |
| Drive Size (mm) | 16; 17; 21; 22; 24; 26; 27; 29 |
| Extended Data Testing | Yes; BS EN 26789, ISO 6789, ASME B107.14M, DIN 3122 |
| Finish | Powder Coated |
| Handle Color | Black |
| Handle Type | Ergonomic |
| Insulated | No |
| Material | Aluminium |
| Measurement Type | SAE |
| Overall Length (inch) | 16 |
| Overall Width (inch) | 1 1/2 |
| Primary Scale Max. Torque (ft-lbs) | 59 |
| Primary Scale Minimum Torque (ft-lbs) | 7 |
| Primary Scale Range (ft/lbs) | 7.4 to 59 |
| Ratcheting | No |
| Reversing | No |
| Rotation | Clockwise and Counterclockwise |
| Secondary Scale Maximum Torque (N m) | 80 |
| Secondary Scale Minimum Torque (N m) | 10 |
| Secondary Scale Range (N m) | 10 to 80 |
| Standards | ASME B107.14M, BSEN 26789, ISO 6789, DIN3122 |
| Torque Adjustability | Adjustable |
| Torque Increments | 0.5 ft-lb; 0.5 N-m |
| Torque Measurement Type | Foot-Pound, Newton-Meter |
| Torque Range | 10 N-m to 80 N-m; 7 ft-lb to 59 ft-lb |
| Torque Setting | Adjustable |
| Visual/Audible Indicators | Audible Click |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

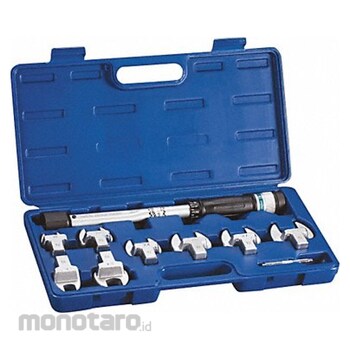

Interchangeable-head torque wrench kits have a combination of interchangeable torque wrenches and torque wrench heads organized into one kit. They ensure that fasteners are tightened correctly and reduce the need for multiple torque wrenches.
Feature
Interchangeable Head Torque Wrench Kit 10 N-m to 80 N-m 7 ft-lb to 59 ft-lb 0.5 ft-lb 0.5 N-m Drive Size 16 mm 17 mm 21 mm 22 mm 24 mm 26 mm 27 mm 29 mm 0.5 ft-lb 0.5 N-m 16 in Extended Data Testing Yes BS EN 26789 ISO 6789 ASME B107.14M DIN 3122 Clockwise Accuracy +/-4 Percent Counterclockwise Accuracy +/-4 Percent Aluminum Powder Coated ErgonomicUlasan Produk
