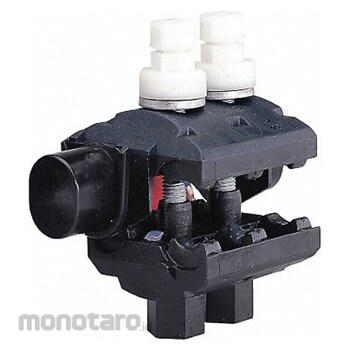

BUCHANAN Insulation-Displacement Wire Connector
#Grup produk P109803018
Spesifikasi
| UNSPSC | 39121409 |
|---|---|
| Color | Black |
| Compatible with Product Type | Energized Systems |
| Connector Type | Run Tap |
| Contact Finish | Nickel |
| Contact Material | Steel |
| Fill Material | Gel |
| Insulation Material | UV-Stable Polymer |
| Max. Insulation Diameter (inch) | 0.5 |
| Maximum Operating Temperature (°F) | 194 |
| Maximum Run Conductors | 1 |
| Maximum Tap Conductors | 1 |
| Maximum Voltage (V) | 600 |
| Number of Ports | 2 |
| Resistance Properties | Corrosion Resistant; Water Resistance |
| RohS Compliant | No |
| Standards | CSA Certified; UL Listed |
| Wire Type | Electrical |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These insulation-displacement connectors have two ports for attaching a tap wire to an existing run wire to extend or terminate the connection.
Feature
Tap Connector Color Black Connector Type Run Tap Insulation Material UV-Stable Polymer Maximum Insulation Diameter 0.5 in Maximum Operating Temperature 194 Degrees F Maximum Run Conductors 1 Maximum Run Wire Insulation Diameter 0.364 in Minimum Run Wire Size 4 AWG Maximum Run Wire Size 2/0 AWG Maximum Tap Conductors 1 Maximum Tap Wire Insulation Diameter 0.101 in Minimum Tap Wire Size 14 AWG Maximum Tap Wire Size 10 AWG Maximum Voltage 600 V Number of Ports 2Ulasan Produk
