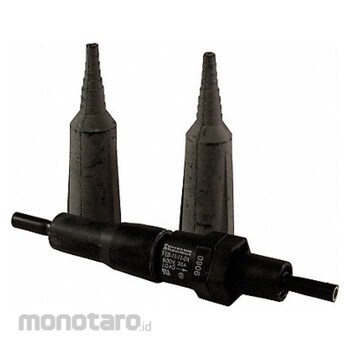

MERSEN In-Line Fuse Holder
#Grup produk P109799016
Spesifikasi
| UNSPSC | 39121617 |
|---|---|
| Amp Range (A) | 0 to 30 |
| Body Height (inch) | 1.12 |
| Body Length (inch) | 5.8 |
| Body Material | PBT |
| Body Width (inch) | 1.12 |
| Connector Type | Crimp |
| Fits Fuse Type | Midget |
| For Fuse Size L x Diameter (inch) | 1 1/2x13/32 |
| Fuse Block Design | Breakaway with Boots |
| Fuse Block Style | Nonrejection |
| Fuse UL Class | Midget |
| Mounting Style | Inline |
| Number of Poles | 1 |
| Standards | CSA; UL-R |
| Visual Indication | Nonindicating |
| Voltage Rating (V) | 600 (AC/DC) |
| Wire Size (AWG) | 14 to 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These in-line fuse holders are compatible with 13/32" x 1 -1/2" UL class CC and midget fuses rated up to 30A. They withstand humid, corrosive environments and are commonly used for overcurrent protection in street lights, parking lot lights, traffic signals, boats, and other outdoor equipment. Breakaway fuse holders comply with state and federal highway commission standards for line-side disconnects during pole knockdowns and include insulating boots that make the fuse holders IP67 rated as dust-tight and submersible in 1m depth of water.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
In-Line Fuse Holder Fits Fuse Type Midget Fuse UL Class Midget 0 to 30 A Number of Poles 1 600V AC/DC For Fuse Size 1-1/2 in L x 13/32 in dia Compatible Fuse Series AGU ATM ATQ BAF BLF BLN FLM FLQ FNM FNQ GGU HC10S KLK KLKD KLM KTK OTM TRM Series FEB Nonindicating Nonrejection Fuse Block Design Breakaway with Boots Wire Size 14 to 8 AWG Wire Length Not Applicable Mounting Style Inline Body Material PBT Connector Type Crimp Body Height 1.12 in Body Width 1.12 inUlasan Produk
