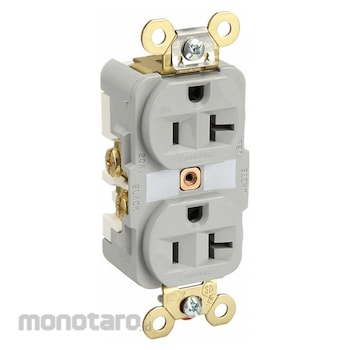

HUBBELL Industrial Straight-Blade Receptacle
#Grup produk P109798895
Spesifikasi
| UNSPSC | 39121406 |
|---|---|
| AFCI | No |
| Additional Electrical Protection | Standard Protection |
| Connection Orientation | Straight |
| Current Rating (A) | 20 |
| Face Plate Height (inch) | 2.7 |
| Face Plate Width (inch) | 1.7 |
| GFCI | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Ivory |
| Includes Mounting Hardware | Yes |
| Max. Wire Size (AWG) | 10 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | -40 |
| Mount Hole Center-to-Center Height (inch) | 3.3 |
| Mount Type | Flush |
| NEMA Enclosure Rating | 1 |
| Number of Gangs | 1 |
| Number of Poles | 2 |
| Number of wires | 3 |
| Overall Depth (inch) | 1.2 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0; V-2 |
| Wire Connection Location | Back; Side |
| Wire Connection Type | Screw Terminal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These duplex receptacles support two electrical plugs and have terminations with screws that tighten down on conductors to secure them.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Receptacle Connection Orientation Straight Cover Type No Cover Current Rating 20 A GFCI No Grounding Grounded Housing Color Brown Housing Material Nylon Mount Type Flush NEMA Enclosure Rating 1 NEMA Receptacle Configuration 5-20R Number of Gangs 1 Number of Poles 2 Number of Wires 3 Phase Single Polarized Yes Receptacle Type Duplex Standards CSA Certified C22.2 No 42 File 285 Federal Specification W-C-596G NEMA WD-6 UL 498 File E2186 Voltage Rating 125V ACUlasan Produk
