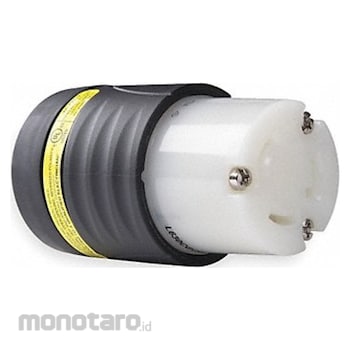

Legrand Industrial Locking-Blade Connector
#Grup produk P109798099
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121403 |
|---|---|
| Connection Orientation | Straight |
| Contact Material | Brass |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black; White |
| Housing Material | Nylon |
| Market | Industrial |
| Max. Wire Size (AWG) | 10 |
| Midget Locking | No |
| Min. Wire Size (AWG) | 18 |
| Minimum/Maximum Operating Temperature (°C) | -40 to 75 |
| Outside Diameter (inch) | 1.516 |
| Overall Length (inch) | 2.791 |
| Phase | Three |
| Resistance Properties | Chemical Resistant; Impact Resistant |
| Shrouded | No |
| Standards | cULus Listed; UL Listed |
| Ul 94 Flammability Rating | V-2 |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These ground continuity monitoring (GCM) connectors identify when they experience electrical issues to protect against fires, shocking hazards, and damage to equipment. They have lights that change colors or turn on/off to signal problems with the device's termination, incoming power, and ground continuity. Their terminations have screws that tighten down on conductors to secure them.
Feature
Locking Connector Connection Orientation Straight Current Rating 20 A Housing Color Black White Housing Material Nylon IP Rating Not Rated NEMA Receptacle Configuration L6-20R Number of Poles 2 Number of Wires 3 Phase Three Resistance Properties Chemical Resistant Impact Resistant Shrouded No Voltage Rating 250V AC Wiring Style Standard Contact Material Brass For Maximum Cable Diameter 0.69 in For Minimum Cable Diameter 0.385 in Grade Federal Specification Grounding GroundedUlasan Produk
