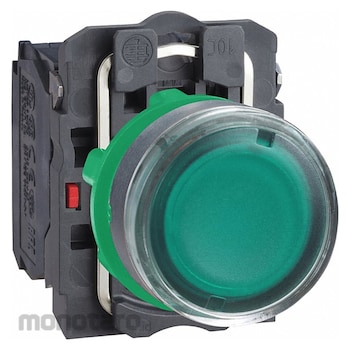

Schneider Electric Illuminated Push Button with Contact Block
#Grup produk P109796994
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121512 |
|---|---|
| Action | Momentary |
| Basic Material | Plastic |
| Bezel | Chrome Plated Metal |
| Color | Green |
| Contact Form | 2NO |
| Contact Rating (A) | 0.1 @600V; 0.27 @250V; 0.55 @125V; 1.2 @600V; 3 @240V; 6 @120V |
| IP Rating | 66; 67; 69; 69K |
| Lamp Module Voltage (AC/DC) (V) | 24 |
| Lamp Type | LED |
| Lamp Voltage (V) | 24 (AC/DC) |
| Legend/Background Color | No Legend |
| NEMA Contact Rating Designation | A600/Q600 |
| NEMA Rating | 13; 4X |
| Number of Operators | 1 |
| Size (mm) | 22 |
| Standards | BV; CSA; CSA C22.2 No 14; DNV; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; GL; JIS C8201-1; JIS C8201-5-1; LROS; RINA; UL 508; UL listed |
| Terminal Connection | Screw Clamp |
| Type of Operator | Flush Button |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Push Button 22 mm Momentary Type of Operator Flush Button Basic Material Plastic 2NO Contact Form Chrome Plated Metal Bezel Color Green Lamp Module Voltage 24V AC/DC Lamp Type LED Lamp Voltage 24 V AC/DC Contact Rating 0.1A @ 600V 0.27A @ 250V 0.55A @ 125V 1.2A @ 600V 3A @ 240V 6 A @ 120V NEMA Contact Rating Designation A600/Q600 Number of Operators 1 NEMA Rating 13 4X IP Rating 66 67 69 69K Legend No Legend Legend/Background Color No LegendDokumentasi Produk
