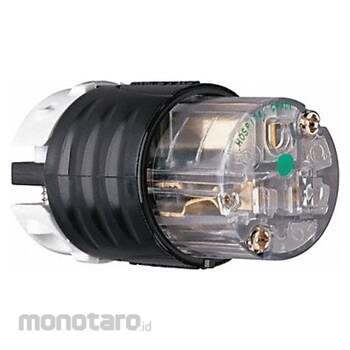

Legrand Hospital-Grade Straight-Blade Connector
#Grup produk P109795551
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121421 |
|---|---|
| Connection Orientation | Straight |
| Contact Material | Brass |
| For Max. Cable Diameter (inch) | 0.72 |
| For Min. Cable Diameter (inch) | 0.23 |
| Grade | Hospital Grade |
| Housing Color | Black; Clear |
| Housing Material | Nylon |
| Number of Poles | 2 |
| Number of wires | 3 |
| Phase | Single |
| Power Indicating Light | No |
| Resistance Properties | Chemical Resistant |
| Standards | cULus Listed; UL 498 |
| Voltage Rating (V) | 125 (AC) |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These connectors have terminations with screws that tighten down on conductors to secure and disconnect them. They make inline connections with plugs and inlets to transfer power.
Feature
Straight Blade Connector Connection Orientation Straight Current Rating 20 A Housing Color Black Clear NEMA Receptacle Configuration 5-20R Number of Poles 2 Number of Wires 3 Phase Single Resistance Properties Chemical Resistant Voltage Rating 125V AC Wire Connection Type Screw Terminals For Maximum Cable Diameter 0.72 in For Minimum Cable Diameter 0.23 in Grade Hospital Grade Horsepower Rating 1 hp Housing Material Nylon IP Rating Not Rated Market CommercialDokumentasi Produk
