Ideal Heat Shrink End Cap
#Grup produk P109784953
Sebelum PPN:
Rp1.699.900 - Rp3.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121711 |
|---|---|
| Adhesive Lined | Yes |
| Application | General |
| Color | Black |
| Dielectric Strength (V) | 1,000 |
| Flame retardant | No |
| Material | Cross-Linked Polyolefin with Adhesive |
| Maximum Temperature Rating (°F) | 110 |
| Minimum Shrink Temperature (°F) | 248 |
| Minimum Temperature Rating (°F) | -55 |
| Shrink Ratio | 3:1 |
| Shrink Tubing Properties | UV Light Resistant |
| Standards | RoHS |
| Temperature Range (°F) | -55 to 110 |
| Tubing Wall Type | Medium Wall |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

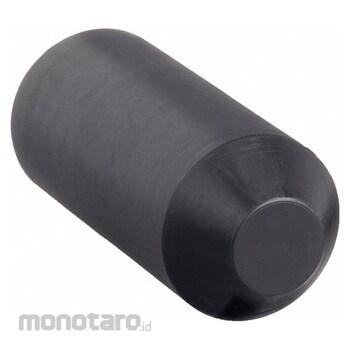

Heat shrink end caps are placed over a cable end, then heated to shrink the cap and melt the adhesive lining. This creates a tight seal around the cable end that insulates it and protects against abrasion, moisture, and corrosion.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Dual Wall End Cap I.D. Before Shrinking 1.38 in I.D. After Shrinking 0.59 in Temp Range -55 Degrees to 110 Degrees F Shrink Ratio 3 1 Length 3.31 in Medium Wall Use With Wire Size 4/0 AWG to 400 MCM Wall Thickness After Shrinking 0.118 in Material Cross-Linked Polyolefin with Adhesive Shrink Tubing Properties UV Light Resistant Flame Retardant No Color Black Adhesive Lined Yes Application General Dielectric Strength 1 000 V Min Shrink Temp 248 Degrees FUlasan Produk
