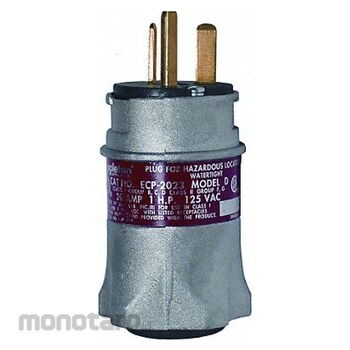

APPLETON ELECTRIC Hazardous-Location Straight-Blade Plug
#Grup produk P109784421
Spesifikasi
| UNSPSC | 39121402 |
|---|---|
| Connection Orientation | Straight |
| Current Rating (A) | 20 |
| Grounding | Grounded |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, DClass II, Div 1 and 2, Group FClass III, Div 1 and 2 |
| Horsepower Rating (hp) | 1 |
| NEMA Plug Configuration | 5-20P |
| Number of Blades | 3 |
| Number of Poles | 3 |
| Phase | Single |
| Polarized | No |
| Resistance Properties | Corrosion Resistant |
| Voltage Rating (V) | 125 (AC) |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These plugs have terminations with screws that tighten down on conductors to secure and disconnect them. They make inline connections with receptacles and connectors to transfer power.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Plug Connection Orientation Straight Current Rating 20 A Grounding Grounded Horsepower Rating 1 hp Housing Color Black IP Rating Not Rated NEMA Plug Configuration 5-20P Number of Blades 3 Number of Poles 3 Phase Single Polarized No Resistance Properties Corrosion Resistant UL 94 Flammability Rating Not Rated Voltage Rating 125V AC Wire Connection Type Screw Terminals Wiring Style Standard Face Diameter 1.75 in For Maximum Cable Diameter 0.639 inUlasan Produk
