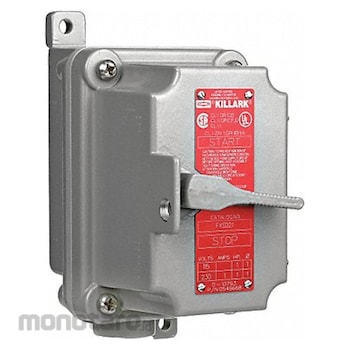

HUBBELL KILLARK Hazardous Location Tumbler Switch
#Grup produk P109784263
Spesifikasi
| UNSPSC | 39121512 |
|---|---|
| Amps (A) | 20 |
| Depth (inch) | 4 |
| Height (inch) | 5 11/32 |
| Horseposwer (hp) | 1 @ 120V AC; 2 @ 240V AC |
| Hub Size (inch) | 3/4 |
| Hub Style | Feed-Thru |
| Legend Markings | On/Off |
| Mounting | Mounting Holes/Hubs |
| NEMA Rating | 3; 7C; 7D; 9E; 9F; 9G |
| Number of Gangs | 1 |
| Safety Rating | Class I, Division 1, Groups C, D; Class I, Division 2, Groups C, D; Class I, Zones 1 & 2, Groups IIB, IIA; Class II, Division 1 & 2, Groups E, F, G; Class III |
| Series | FXS |
| Standards | CSA; UL |
| Switch Type | 1-Pole |
| Type of Operator | Toggle |
| Voltage (V) | 120 to 277 (AC) |
| Width (inch) | 3 11/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Each of these tumbler switches is designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations. They can be used in the presence of ignitable concentrations of metal dusts in dust locations including aluminum, magnesium dust, carbon black, charcoal dust, coal, and coke dust. They are also suitable for applications that require making, breaking, or changing connections in an electrical circuit.
Feature
Tumbler Switch Toggle Series FXS Number of Gangs 1 Switch Type 1-Pole Amps 20 A Voltage 120 to 277V AC HP 1 hp @ 120V AC 2 hp @ 240V AC Hub Style Feed-Thru Hub Size 3/4 in Mounting Mounting Holes/Hubs Legend Markings On/Off Special Features Pad Lockable in the On or Off Position NEMA Rating 3 7C 7D 9E 9F 9G Standards CSA ULUlasan Produk
