APPLETON ELECTRIC Hazardous Location Tumbler Switch
#Grup produk P109784245
Sebelum PPN:
Rp11.999.900 - Rp18.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121104 |
|---|---|
| Amps (A) | 20 |
| Body Material | Malleable Iron |
| Depth (inch) | 4 11/16 |
| Height (inch) | 4 5/8 |
| Horseposwer (hp) | 1 @ 120V AC; 2 @ 240V AC |
| Legend Markings | On/Off |
| NEMA Rating | 7C; 7D; 9E; 9F; 9G |
| Standards | UL 1203; UL 894 |
| Type of Operator | Front Operated |
| Voltage (V) | 120 to 277 (AC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

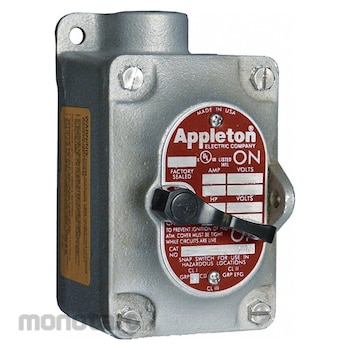

These hazardous location tumbler switches feature enclosures with external mounting lugs for easy mounting. The smooth, rounded integral bushings in each hub also help protect conductor insulation. Enclosures have an internal ground screw. Use in locations made hazardous by the presence of flammable vapors, gases, and combustible dust.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Tumbler Switch Front Operated Series EDS Number of Gangs 1 Switch Type 1-Pole Amps 20 A Voltage 120 to 277V AC HP 1 hp @ 120V AC 2 hp @ 240V AC Hub Style Dead-End Hub Size 3/4 in Mounting Mounting Holes Legend Markings On/Off Special Features Corrosion Resistant Pad Lockable in the On or Off Position NEMA Rating 7C 7D 9E 9F 9G Standards UL 1203 UL 894Ulasan Produk
