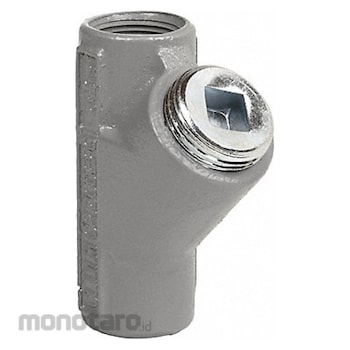

KILLARK Hazardous Location Sealing Fitting
#Grup produk P109784041
Spesifikasi
| UNSPSC | 39121202 |
|---|---|
| Conduit Orientation | Vertical |
| Connection Type | Threaded |
| Ends - Hazardous Fittings | 1/2 in FNPT x 1/2 in FNPT |
| Finish | Powder Coated |
| Hazardous Location Rating | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III |
| Material | Aluminium |
| Overall Length (inch) | 3 5/16 |
| Position | Vertical |
| Seal Type | 25% Fill, Vertical Conduit Drain Sealing Fittings |
| Standards | cCSAus Certified |
| Thread Gender | Female to Female |
| Thread Size (inch) | 1/2 |
| Thread Type | NPT |
| Trade Size | 1/2 |
| Turning Radius (inch) | 1.69 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Sealing fittings join pieces of RMC and IMC conduit together and can be used in a vertical orientation only. They have a 25% fill and conductors should not exceed this amount of space within the fittings so they can be sealed properly. These fittings hold a seal around wire within the conduit to minimize the passage of gases and vapors, prevent the passage of flames from one electrical installation to another, restrict explosions to the sealed-off enclosure, and prevent pressure from piling up in the conduit system. They’re suitable for use in hazardous locations where flammable gases, vapors, powdered metals, or dust is present.
Feature
Sealing Fitting - Vertical Trade Size 1/2 in Ends - Hazardous Fittings 1/2 in FNPT x 1/2 in FNPT Overall Length 3 5/16 in Aluminum Hazardous Location Rating Class I Division 1 and 2 Groups B C D Class II Division 1 and 2 Groups E F G Class III Thread Gender Female to Female Used In Hazardous Locations to Minimize the Passage of Gases and Vapors and Prevent the Passage of Flames from One Portion of the Electrical System to Another Through the Conduit GrayUlasan Produk
