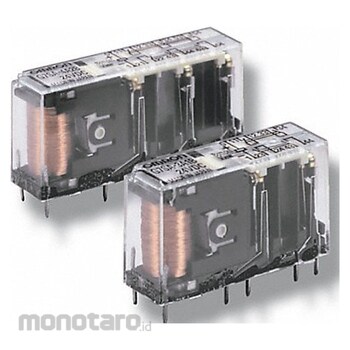

OMRON Force-Guided Relay
#Grup produk P109762003
Spesifikasi
| UNSPSC | 39121514 |
|---|---|
| Body Depth (Rework) (inch) | 0.94 |
| Body Height (REWORK) (inch) | 0.51 |
| Body Width (REWORK) (inch) | 1.97 |
| Coil Resistance (ohm) | 1,152 |
| Coil Voltage (VDC) | 24 |
| Compatible with Manufacturer Model Number | P7SA-F-ND |
| Contact Form | SPST-NC; 5PST-NO |
| Contact Rating (AC) (A) | 6 @250V |
| Contact Rating (DC) (A) | 6 @30V |
| Current Rating (A) | 6 |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| IP Rating | IP40 |
| Max. Switching Current (A) | 6 |
| Maximum Operating Temperature (°F) | 185 |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Pins/Terminals | 14 |
| Power Consumption (mW) | 500 |
| Relay Mounting Style | Socket |
| Resistance Properties | Shock-Resistant; Vibration-Resistant |
| Response Time (msec) | 10 |
| Socket Code | P |
| Standards | CSA Certified; EN; UL Listed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These force guided relays have pin-shaped connectors that plug into compatible sockets. Socket-mounted relays don't require tools for removal or installation and are ideal for applications where relays are changed periodically.
Feature
Force Guided Relay Base Shape Square Coil Voltage 24V DC Contact Form 5PST-NO SPST-NC Current Rating 6 A Electrical Connection 14-Pin Terminal Flat Pin Width 0.02 in Number of Pins 14 IP Rating IP40 Sealing Flux Sealed Contact Rating (AC) 6 A @ 250V Contact Rating (DC) 6 A @ 30V Mounting Style Socket Body Depth 0.94 in Body Height 0.51 in Body Width 1.97 in Coil Resistance 1 152 ohm Compatible with Manufacturer Model Number P7SA-F-ND Contact Material Gold Plated Silver AlloyUlasan Produk
