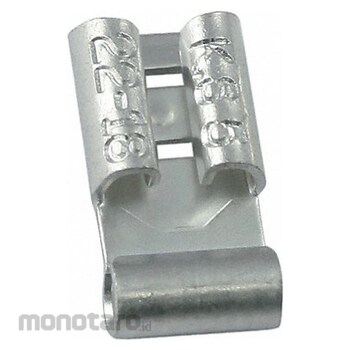

POWER FIRST Flag Disconnect
#Grup produk P109760768
Spesifikasi
| UNSPSC | 39121409 |
|---|---|
| Barrel Inner Diameter (inch) | 0.13 |
| Barrel Outer Diameter (inch) | 0.248 |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Connection Orientation | 90° Angled |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current (A) | 24 |
| Disconnect Style | Tab |
| Flammability Rating | V-2 |
| Insulation Color | Yellow |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Max. Wire Size (AWG) | 10 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 300 |
| Min. Wire Size (AWG) | 12 |
| Overall Length (inch) | 0.906 |
| RohS Compliant | Yes |
| Seam Style | Butted |
| Standards | UL/cUL Listed |
| Strip Length (inch) | 3/8 |
| Tab Thickness (inch) | 0.032 |
| Tab Width (inch) | 0.25 |
| Terminal Type | Socket |
| Termination Style | Crimp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These flag disconnects have no insulation and provide an unobstructed view of their barrel for more precise crimping and to allow inspection of the wire contact and tensile strength. Non-insulated flag disconnects are suitable for higher voltage applications but should never be used in corrosive environments or anywhere the connection might get inadvertently touched.
Feature
Female Flag Disconnect Contact Finish Tin Contact Material Brass Disconnect Style Tab Insulation Color Bare Insulation Coverage None Insulation Material None Maximum Operating Temperature 221 Degrees F Minimum Wire Size 16 AWG Maximum Wire Size 14 AWG Maximum Voltage 600 V Tab Thickness 0.032 in Tab Width 0.25 in Terminal Type Socket Termination Style Crimp RoHS Compliant Yes Seam Style Butted Standards UL/cUL Listed Barrel Inside Diameter 0.087 in Barrel Size StandardUlasan Produk
