SUPCO External-Mount SPDs
#Grup produk P109758170
Spesifikasi
| UNSPSC | 39121610 |
|---|---|
| Basic Material | Nonmetallic |
| Chase Nipple Size (inch) | 1/2 |
| Color | Clear |
| Depth (inch) | 3 |
| Enclosure Material | Plastic |
| Enclosure NEMA Rating | 4X |
| Filtering | No |
| IP Rating | 66 |
| Length (inch) | 4 |
| Max. Continuing Operating Voltage (V) | 150/300 (AC) |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | -40 |
| Modes of Protection | L-G; L-L; L-N; N-G |
| Modular | No |
| Mounting Style | Surface |
| Nominal Discharge Current (kA) | 10 |
| Number of Poles | 2 |
| Number of wires | 2 Wires + Ground |
| Phase | Single |
| Short Circuit Current Rating (kA) | 10 |
| Standards | UL 1449 4th Edition, Type 2 |
| Status indicator | LED Light |
| System Connection | Parallel |
| UL SPD Type | Type 2 |
| Voltage (V) | 120/240 (AC) |
| Voltage Protection Rating (V) | 600 (L-G, L-N, N-G); 900 (L-L) |
| Width (inch) | 3 |
| Wire Gauge (AWG) | 18 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

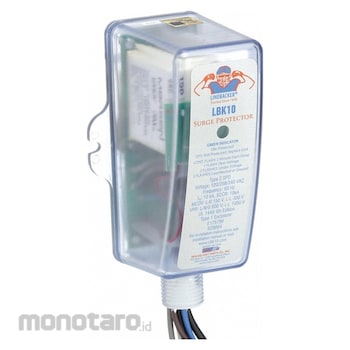

These SPDs are used for HVAC/R compressors, air handlers, furnaces, and other HVAC equipment to detect and limit power surges to protect equipment from damage. They are mounted externally on the load side of the panel.
Feature
Surge Protection Device Nonmetallic Chase Nipple Size 1/2 in Clear Depth 3 in Enclosure Material Plastic Enclosure NEMA Rating 4XUlasan Produk
