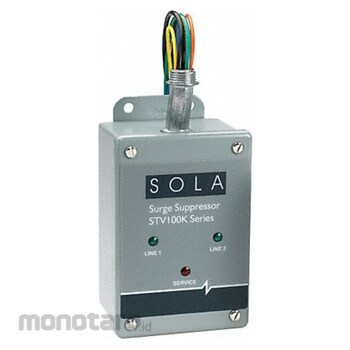

SOLAHD External-Mount SPDs
#Grup produk P109758152
Spesifikasi
| UNSPSC | 39121610 |
|---|---|
| Basic Material | Metallic |
| Chase Nipple Size (inch) | 1/2 |
| Depth (inch) | 3.2 |
| Enclosure Material | Metal |
| Enclosure NEMA Rating | 12 |
| Length (inch) | 6 |
| Max. Continuing Operating Voltage (V) | 575/640 (AC) |
| Max. Surge Current per Mode (kA) | 50 (L-L; L-G) |
| Max. Surge Current per Phase (kA) | 100 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | -40 |
| Modes of Protection | L-G; L-L |
| Modular | No |
| Mounting Style | Chase Nipple |
| Noise Attenuation (dB) | 40 |
| Nominal Discharge Current (kA) | 20 |
| Number of Poles | 3 |
| Number of wires | 3 Wires + Ground |
| Phase | Three |
| Short Circuit Current Rating (kA) | 100 |
| Standards | cULus Listed; RoHS; Type 2 |
| Status indicator | Audible Alarm; LED Light |
| System Connection | Parallel |
| UL SPD Type | Type 2 |
| Voltage (V) | 480 (AC Delta) |
| Voltage Protection Rating (V) | 2000 (L-G, L-L) |
| Width (inch) | 4 |
| Wire Gauge (AWG) | 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These SPDs are used for service entrance, branch panel, or sensitive electronic applications to detect and limit power surges to protect equipment from damage. They have a chase nipple to terminate the wire in an enclosure. They are mounted externally as close to the service panel as possible.
Feature
Surge Protection Device Metallic Chase Nipple Size 1/2 in Depth 3.2 in Enclosure Material Metal Enclosure NEMA Rating 12Ulasan Produk
