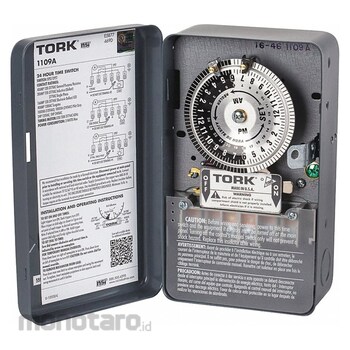

NSI INDUSTRIES LLC Electromechanical Timer
#Grup produk P109754165
Spesifikasi
| UNSPSC | 39121523 |
|---|---|
| Amps (A) | 40 |
| Contact Form | DPST |
| Contact HP @ 120V/@ 240V (hp) | 2 / 5 |
| Day Skipper | No |
| Depth x Width (inch) | 2 5/16x3 1/2 |
| Enclosure Type | Metal Indoor |
| Finish | Brush Metal |
| Max. On/Off Cycles | 12 |
| Maximum Time Setting (hour) | 12 |
| Minimum Time Setting (minute) | 20 |
| Mount | Surface |
| NEMA Rating | 1 |
| Nominal Maximum Time Setting (hour) | 22 |
| Number of Poles | 2 |
| Number of Trippers Included | 2 |
| Operating Temperature (°F) | -40 to 165 |
| Standards | UL Listed,CSA 60730,UL917 |
| Type | 24 hr |
| Voltage (V) | 120 208 to 277 (AC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These switches provide automatic On/Off control when operation is required at the same time every day. They also feature manual override controls. Use to operate outdoor building lights, commercial ovens, and heaters for pools and spas.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Electromechanical Timer 24 hr Number of Poles 2 Contact Form DPST Voltage 120 208 to 277V AC Amps 40 A Contact HP @ 120V 2 hp Contact HP @ 240V 5 hp Day Skipper No Enclosure Type Metal Indoor Finish Brush Metal NEMA Rating 1 Min Time Setting 20 min Max Time Setting 12 hr Max On/Off Cycles 12 Depth 2 5/16 in Number of Trippers Included 2 Extra Trippers 30YJ54 Operating Temp -40 Degrees to 165 Degrees F Description/Special Features Dust-Proof On/Off Setting Mount SurfaceUlasan Produk
