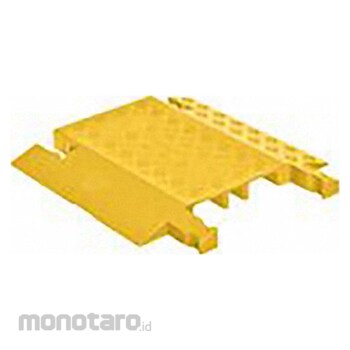

GUARD DOG Drop-Over Modular Cable Ramp
#Grup produk P109739722
Spesifikasi
| UNSPSC | 24141510 |
|---|---|
| Channel Height (inch) | 1 3/8 |
| Channel Width (inch) | 1 5/8; 3 1/4 |
| Connection Style | Dog Bone |
| For use with | Cables; Conduit; Hose Lines; Pipes |
| Height (inch) | 1 7/8 |
| Length (inch) | 18 |
| Load Capacity (lbs) | 21000 (per axle) |
| Material | Polyurethane |
| Max. Cable Diameter (inch) | 1 13/40 |
| Number of Channels | 1 |
| Style | Drop Over |
| Width (inch) | 19 3/4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These drop-over cable ramps have three channels for protecting three cables or hoses. They prevent damage from foot or vehicle traffic, and prevent tripping hazards in temporary indoor and outdoor applications. These ramps lay over runs of cable and hose and may be interlocked.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Cable Protector Number of Channels 1 Cable Feed Style Lay Under Connection Style Dog Bone Channel Height 1 3/8 in Channel Width 1 5/8 in 3 1/4 in Load Capacity 21 000 lb/Axle Material Polyurethane Style Drop Over Color Yellow For Use With Cables Conduit Hose Lines Pipes Max Cable Dia 1 5/16 in Height 1 7/8 in Length 18 in Width 19 3/4 in ADA Compliant No Texture SerratedUlasan Produk
