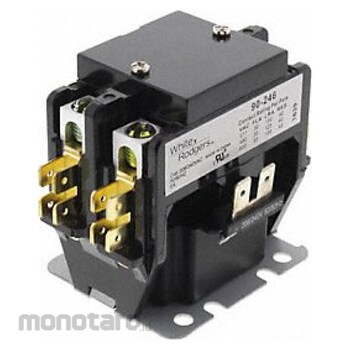

WHITE-RODGERS Definite Purpose Contactor
#Grup produk P109736424
Spesifikasi
| UNSPSC | 39121529 |
|---|---|
| Coil Voltage (VAC) | 208/240 |
| Contactor Frame Size | Standard |
| Frequency (Hz) | 50/60 |
| Full Load Current - Inductive (A) | 30 |
| Full Load Current - Resistive (A) | 40 |
| Main Pole Contact Form | 2NO |
| Max. Voltage Rating (V) | 600 (AC) |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°F) | -40 |
| Mounting Hole Diameter (inch) | 0.22 |
| Mounting Hole Distance - Height (inch) | 1.63 |
| Mounting Hole Distance - Width (inch) | 1.63 |
| Nominal Coil Voltage @ 60Hz (V) | 208-240 (AC) |
| Number of Poles | 2 |
| Overall Depth (inch) | 3.38 |
| Overall Height (inch) | 2.5 |
| Overall Width (inch) | 2 |
| Reversing Capability | Non-Reversing |
| Standards | ARI; UL Listed |
| Wire Termination Type | Quick Disconnect |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These non-reversing definite purpose contactors connect and disconnect power to motors, machinery, and other high-current equipment in a single direction.
Feature
Definite Purpose Magnetic Contactor LED Lighting Current Rating Not Applicable Coil Voltage 208/240V AC Series 90 Series Number of Poles 2 NEMA Enclosure Rating No Enclosure Tungsten Lighting Current Rating Not Applicable Fluorescent Lighting Current Rating Not Applicable Reversing Capability Non-Reversing Frame Size Not Applicable Full Load Current - Resistive 40 A Full Load Current - Inductive 30 A Maximum Voltage Rating 600V AC Overall Height 2.5 in Overall Width 2 inUlasan Produk
