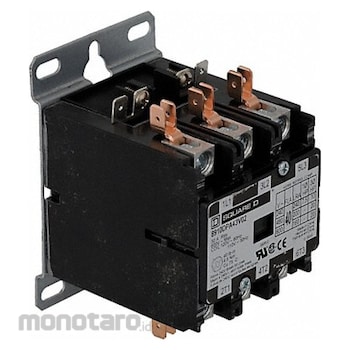

SQUARE D Definite Purpose Contactor
#Grup produk P109736381
Spesifikasi
| UNSPSC | 39121529 |
|---|---|
| Coil Voltage (VAC) | 110/120 |
| Contactor Frame Size | Standard |
| Frequency (Hz) | 50/60 |
| Full Load Current - Inductive (A) | 40 |
| Full Load Current - Resistive (A) | 120 |
| Horsepower @ Single Phase - 120V AC (hp) | 3 |
| Horsepower @ Single Phase - 240V AC (hp) | 7 1/2 |
| Horsepower @ Three Phase - 240V AC (hp) | 10 |
| Horsepower @ Three Phase - 480V AC (hp) | 20 |
| Horsepower @ Three Phase - 600V AC (hp) | 20 |
| Locked Rotor Load (A) | 160 @575V AC; 200 @460V AC; 240 @277V AC |
| Main Pole Contact Form | 3NO |
| Max. Voltage Rating (V) | 600 (AC) |
| Nominal Coil Voltage @ 60Hz (V) | 120 (AC) |
| Number of Poles | 3 |
| Overall Depth (inch) | 3 |
| Overall Height (inch) | 3.75 |
| Overall Width (inch) | 2.37 |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Standards | CSA; REACH; RoHS; UL Listed |
| Wire Termination Type | Quick Disconnect |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These non-reversing definite purpose contactors connect and disconnect power to motors, machinery, and other high-current equipment in a single direction.
Feature
Definite Purpose Magnetic Contactor LED Lighting Current Rating Not Applicable Coil Voltage 110/120V AC Series 8910 Series Type DPA Number of Poles 3 NEMA Enclosure Rating No Enclosure Tungsten Lighting Current Rating Not Applicable Fluorescent Lighting Current Rating Not Applicable Reversing Capability Non-Reversing Frame Size Not Applicable Horsepower @ Single Phase - 240V AC 7 1/2 hp Horsepower @ Single Phase - 120V AC 3 hp Full Load Current - Resistive 120 AUlasan Produk
