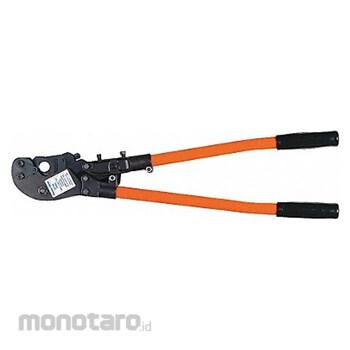

THOMAS BETTS Compression Lug & Splice Crimper
#Grup produk P109719223
Spesifikasi
| UNSPSC | 27111518 |
|---|---|
| Adjustability | Manual |
| Crimper Style | Ratchet Crimper |
| For Connector Type | #8 - 250 kcmil copper lugs, up to 4/0 AWG aluminum#8 - 250 kcmil copper splices, up to 4/0 AWG aluminum |
| For Terminal Type | Power or Grounding Conductors |
| Grip Style | Deluxe Cushion |
| Includes Crimping Die | Yes |
| Includes Wire Cutter | No |
| Includes Wire Stripper | No |
| Insulated | No |
| Max. Compatible Wire Size (kcmil) | 250 |
| Max. Crimping Capacity - Copper Lug (kcmil) | 250 |
| Maximum Crimping Capacity - Aluminum Lug (AWG) | 4/0 |
| Min. Compatible Wire Size (AWG) | 8 |
| Minimum Crimping Capacity - Aluminum Lug (AWG) | 10 |
| Minimum Crimping Capacity - Copper Lug (AWG) | 8 |
| Overall Length (inch) | 26 |
| Primary Crimping Application | Electrical Wire and Cable |
| Ratcheting Mechanism | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The controlled-cycle mechanism of these lug and splice crimpers ratchets the jaws, crimping to a preset depth and applying pressure evenly for repeatable results without overcrimping. Also known as full-cycle crimpers, they release the jaws after each crimping cycle. They form stronger, more uniform crimps than crimping pliers.
Feature
Ratchet Crimper Crimper Style Ratchet Crimper Compatible Connector Type #8 - 250 kcmil copper lugs up to 4/0 AWG aluminum #8 - 250 kcmil copper splices up to 4/0 AWG aluminum Compatible Terminal Type Power or Grounding Conductors Minimum Compatible Wire Size 8 AWG Maximum Compatible Wire Size 250 kcmil Maximum Crimping Force Not Rated Tool Length 26 in Includes Wire Cutter No Includes Wire Stripper No Insulated No Adjustability ManualUlasan Produk
