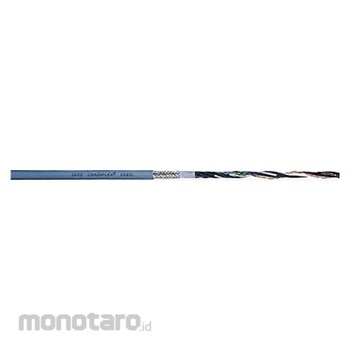

CHAINFLEX Communication & Control Cable
#Grup produk P109718206
Spesifikasi
| UNSPSC | 26121609 |
|---|---|
| Overall Length (ft) | 100 |
| Outside Diameter (inch) | 0.3 |
| Jacket Color | Gray |
| Application | Control Systems; Instrumentation Systems |
| Conductor Gauge (AWG) | 20 |
| Fire Rating | Appliance Wiring Material |
| Insulation Material | TPE |
| Jacket Material | PVC |
| Max. Voltage Rating (V) | 300 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 41 |
| NEC Article and Type | AWM |
| No. of Conductors | 4 |
| No. of Pairs | 2 |
| Package Type | Spool |
| Pairing | Paired |
| Resistance Properties | Flame/Fire Resistant; Impact Resistant; Oil Resistant |
| Shielded | Shielded |
| Shielding material | Tinned Copper Braid |
| Solid/Stranded | Stranded |
| Standards | CE 2014/35/EU; CEI 20-35; CF240.02.24 Standard 14644-1; CTP DE.PB49.B.00416; EAC-Certified TC RU C-DE. ME77.B.01254; NFPA 79-2012 Chapter 12.9; PV 3.10.7-Status 1992; RoHS-II; UL/CSA AWM |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Multi-paired shielded cables have a collection of solid or stranded individual wires that are twisted together and encased by a protective layer of outer insulation. Also called balanced arrays and twisted pairs, these cables have a braided or foil shield to safeguard against electromagnetic interference (EMI) and maintain the integrity of transmitted signals. They are often used for alarm, audio, and communication systems, access control, and instrumentation control.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Continuous Flexing Appliance Wiring Communication Cable Cable Length 100 ft Fire Rating Appliance Wiring Material Conductor Gauge 20 AWG Insulation Material TPE Jacket Color Gray Jacket Material PVC Shielded Shielded Shielding Material Tinned Copper Braid Solid/Stranded Stranded Number of Conductors 4 Outside Diameter 0.3 in Package Type Spool Application Control Systems Instrumentation Systems Maximum Voltage Rating 300 V NEC Article and Type AWM Number of Pairs 2Ulasan Produk
