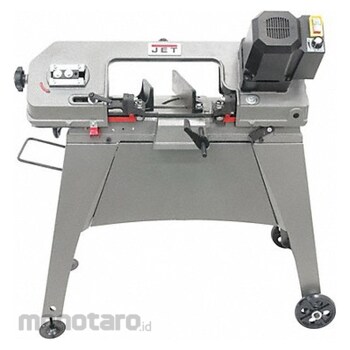

JET Combination Metal- & Wood-Cutting Band Saw
#Grup produk P109716022
Spesifikasi
| UNSPSC | 27112709 |
|---|---|
| Amps AC (A) | 15 |
| Band Saw Operation | Manual |
| Band Saw Type | Combination Horizontal/Vertical |
| Blade Length (inch) | 64 1/2 |
| Blade Thickness (inch) | 0.025 |
| Blade Wheels Diameter (inch) | 7.375 |
| Current (A) | 15 |
| Cutting Capacity Square (inch) | 5 |
| Frequency (Hz) | 60 |
| Horseposwer (hp) | 0.5 |
| Material Application | Metal; Wood |
| Max. Blade Length (inch) | 64 1/2 |
| Max. Blade Width (inch) | 1/2 |
| Min. Blade Length (inch) | 64 |
| Min. Blade Width (inch) | 1/2 |
| Miter Angle Range | 45° , 90° |
| Number of Speed Settings | 3 |
| Overall Depth (inch) | 37 |
| Overall Height (inch) | 41 11/32 |
| Overall Width (inch) | 17 23/32 |
| Phase | 1 |
| Rectangular Cutting Capacity - Horizontal (inch) | 2x6; 5x5 3/4 |
| Round Cutting Capacity - Horizontal (inch) | 5 |
| SFPM Range | 80 to 230 |
| Table Dimensions (inch) | 9 5/8x9 1/2 |
| Throat Depth - Vertical (inch) | 5 |
| Voltage (V) | 115/230 (AC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Combination vertical and horizontal metal-cutting band saws have a pivoting head that allows the saw to be used vertically or horizontally. This allows shops to have the functionality of both tools while only taking up the floor space of one tool. Vertical band saws are manually operated. They have a table that supports the workpiece as the operator pushes it past the blade. Horizontal band saws have a table that supports the workpiece and a head that is lowered onto the workpiece to make the cut, making them a good choice for large workpieces or cuts that take a long time.
Feature
Band Saw Band Saw Type Combination Horizontal/Vertical Band Saw Operation Manual Voltage 115/230V AC Phase 1 Rectangular Cutting Capacity - Horizontal 2 in x 6 in 5 in x 5 3/4 in Throat Depth - Vertical 5 in Round Cutting Capacity - Horizontal 5 in SFPM Range 80 to 230 Miter Angle Range 45 Degrees 90 Degrees Number of Speed Settings 3 Material Application Metal Wood Blade Length 64 1/2 in Max Blade Width 1/2 in Min Blade Width 1/2 in Cutting Capacity Square 5 inUlasan Produk
