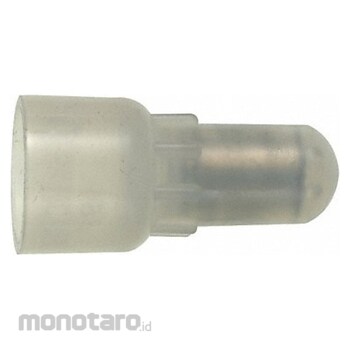

Panduit Closed-End Crimp Wire Connector
#Grup produk P109715528
Sebelum PPN:
Rp2.299.900 - Rp5.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121409 |
|---|---|
| Barrel Inner Diameter (inch) | 0.16 |
| Color | Clear |
| Compatible Installation Tool Model Number | CT-1550; CT-1551; CT-2500/L (CT-2550CH) |
| Compatible with Series | CT |
| Contact Finish | Tin |
| Contact Material | Brass |
| For Wire Type | Nylon Insulated Wire |
| Insulation Material | Nylon |
| Max. Wire Size (AWG) | 12 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Min. Wire Size (AWG) | 18 |
| Overall Length (inch) | 0.93 |
| Standards | CSA C22.2 No 65; UL 486C |
| Strip Length (inch) | 1/2 |
| Termination Style | Crimp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These closed-end crimp connectors use crimping tools to connect two or more wires to extend or cap off a connection.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Closed-End Crimp Connector Color Clear Insulation Material Nylon Maximum Operating Temperature 221 Degrees F Maximum Voltage 600 V Minimum Wire Combination 18 AWG with 18 AWG Solid Maximum Wire Combination 12 AWG with 12 AWG Solid Contact Finish Tin Contact Material Brass Standards CSA C22.2 No 65 UL 486C Barrel Inside Diameter 0.16 in Compatible Grainger Part Number 376U11 38YU61 Compatible Installation Tool Model Number CT-1550 CT-1551 CT-2500/L (CT-2550CH)Ulasan Produk
