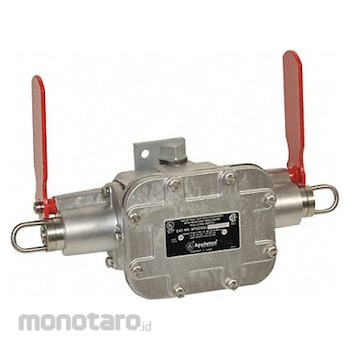

APPLETON ELECTRIC Cable Pull Switch
#Grup produk P109706140
Spesifikasi
| UNSPSC | 39121505 |
|---|---|
| AC Contact Rating (A) | 15 @120/240/480/600V AC |
| Cable Connection Location | Left and Right |
| Case Material | Cast Aluminium |
| Contact Form | 1NC-DB/1NO |
| DC Contact Rating (A) | 0.4 @ 230 V DC; 0.8 @ 115V DC |
| Depth (inch) | 7.7 |
| For use with | Conveyor Control Switch |
| Indicator | Flag Arm |
| Length (inch) | 16.7 |
| Maximum Cable Span (ft) | 200 |
| Mounting Style | Double End |
| NEMA Rating | 12; 3; 4; 4X |
| Operating Force (lbs) | 15 |
| Reset | Actuator |
| Standards | UL 1203; UL 508; UL 698 |
| Switch Function | Maintained |
| Switching Ability | Dual Cable |
| Thermal Amperage (A) | 15 |
| Width (inch) | 11 |
| Wiring Entry | Two 1 in Conduit Openings |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Emergency Cable Pull Switch Switch Function Maintained Mounting Style Double End AC Contact Rating 15A @ 120/240/480/600V AC Contact Form 1NC-DB/1NO Actuator Reset Max Cable Span 200 ft Operating Force 15 lb NEMA Rating 12 3 4 4X Indicator Flag Arm Cable Connection Location Left and Right Thermal Amperage 15 A Length 16.7 in Width 11.0 in Depth 7.7 in Switching Ability Dual Cable DC Contact Rating 0.4A @ 230 V DC 0.8A @ 115V DC Min Current Not ApplicableUlasan Produk
