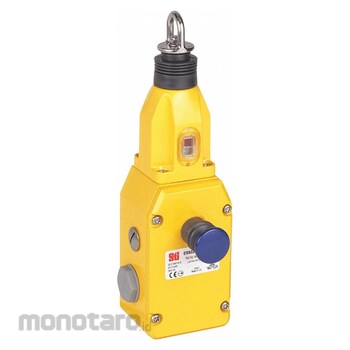

OMRON Cable Pull Switch
#Grup produk P109706104
Spesifikasi
| UNSPSC | 39121505 |
|---|---|
| AC Contact Rating (A) | 3 @240V AC; 6 @120V AC |
| Cable Connection Location | Left or Right |
| Case Material | Die Cast Alloy |
| Contact Form | 2NC/1NO |
| DC Contact Rating (A) | 0.5 |
| Depth (inch) | 3.39 |
| For use with | 44506-0700; 44506-4700; 44506-4710; 44506-4720; 44506-4721; 44506-4730; 44506-4731; 44506-4760; 44506-4770; 44506-4771; 44506-4780; Mfr. No. 44506-0720 |
| IP Rating | 67 |
| Indicator | Tension |
| Length (inch) | 8.74 |
| Maximum Cable Span (ft) | 246 |
| Min. Current (mA) | 5 |
| Mounting Style | Single End |
| NEMA Rating | 6 |
| Operating Force (lbs) | 28 |
| Reset | Push Button |
| Standards | CE Marked; UL and cUL Listed |
| Switch Function | Maintained |
| Switching Ability | Single Cable |
| Thermal Amperage (A) | 6 |
| Width (inch) | 3.78 |
| Wiring Entry (inch) | 1/2 (NPT) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Emergency Cable Pull Switch Switch Function Maintained Mounting Style Single End AC Contact Rating 3A @ 240V AC 6A @ 120V AC Contact Form 2NC/1NO Push Button Reset Max Cable Span 246 ft Operating Force 28 lb NEMA Rating 6 Indicator Tension Cable Connection Location Left or Right Thermal Amperage 6 A Length 8.74 in Width 3.78 in Depth 3.39 in Switching Ability Single Cable DC Contact Rating 0.5A Min Current 5mA Case Material Die Cast Alloy Wiring Entry 1/2 in NPTUlasan Produk
