POWER FIRST Butt Splice Wire Connector
#Grup produk P109704489
Spesifikasi
| Body Finish | Tin Plated |
|---|---|
| Body Material | Copper |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Max. Conductors | 2 |
| Maximum Voltage (V) | 600 |
| Number of Splices | 1 |
| RohS Compliant | Yes |
| Seam Style | Seamless |
| Standards | UL/cUL Listed |
| Termination Style | Crimp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

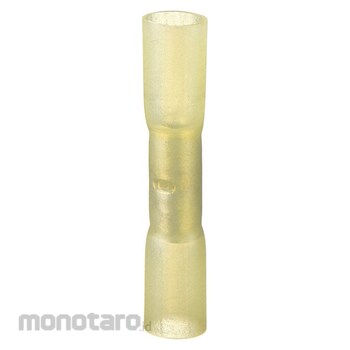

These butt splice connectors attach wires with crimping tools. Wires insert into each end of the connector until they reach the center of the metal sleeve, where they compress with a crimping tool to hold and splice the connection.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Splice Connector Connection Type Crimp Insulation Color Red Maximum Operating Temperature 221 Degrees F Maximum Voltage 600 V Minimum Wire Size 12 AWG Maximum Wire Size 8 AWG Standards UL/cUL Listed Termination Style Crimp Contact Finish Tin Contact Material Copper UL 94 Flammability Rating HB Overall Length 1.91 in RoHS Compliant Yes Seam Style Seamless Barrel Inside Diameter 0.177 in Body Finish Tin Plated Body Material Copper Compatible Installation Tool Model Number 24C968Ulasan Produk
