GROTE Butt Splice Wire Connector
#Grup produk P109703824
Spesifikasi
| UNSPSC | 31160000 |
|---|---|
| Connection Type | Heat Shrink; Solder |
| Contact Finish | Tin |
| Insulation Material | Polyolefin |
| Insulation Type | Heat Shrink |
| Maximum Operating Temperature (°F) | 230 |
| Maximum Voltage (V) | 600 |
| Minimum Operating Temperature (°F) | -67 |
| RohS Compliant | Yes |
| Seam Style | Soldered |
| Standards | CSA-RU; RoHS Compliant; UL |
| Termination Style | Solder |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

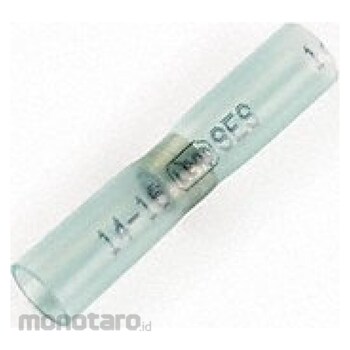

These butt splices connectors have solder inside their sleeve that melts over the conductors to join them. Wires insert into each end until they reach the center of the connector, where they compress with a crimping tool. Next, a heat gun heats the center of the connector to melt the solder insert over the conductors and solidify the bond once it cools. Since they require a heating element to melt the solder, these butt splices are not recommended for use in enclosed environments.
Feature
Butt Splice Connector Connection Type Heat Shrink Solder Insulation Material Polyolefin Insulation Color Yellow Maximum Operating Temperature 230 Degrees F Maximum Voltage 600 V Minimum Wire Size 12 AWG Maximum Wire Size 10 AWG Standards CSA-RU RoHS Compliant UL Termination Style Solder Contact Finish Tin Overall Length 1.61 in RoHS Compliant Yes Seam Style Soldered Insulation Type Heat Shrink Minimum Operating Temperature -67 Degrees F Package Quantity 100Ulasan Produk
