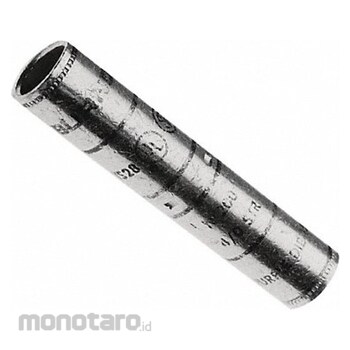

BURNDY Butt Splice Compression Connector
#Grup produk P109703046
Spesifikasi
| UNSPSC | 31162810 |
|---|---|
| Barrel Finish | Tin Plated |
| Barrel Size | Long |
| Compatible Installation Tool Model Number | MD6; MD7-34R; OUR840; PAT81KFT-18V; Y35; Y39; Y46; Y750; Y81KFT; Y81KFTMBH |
| Contact Finish | Tin |
| Contact Material | Copper |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| Material | Copper |
| Max. Conductors | 2 |
| Max. Voltage (kV) | 35 |
| Maximum Operating Temperature (°F) | 194 |
| Number of Crimps | 4 |
| RohS Compliant | Yes |
| Seam Style | Seamless |
| Standards | CSA Certified; UL Listed |
| Termination Style | Crimp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These long barrel compression connectors require two crimps on each end of their barrel to secure cables. Double crimping provides a stronger hold on the cables to prevent them from falling out.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Long-Barrel Splice Barrel Finish Tin Plated Barrel Size Long Color Code Black Die Code 13 For Conductor Material Copper For Wire Type Stranded Material Copper Maximum Voltage 35 kV Minimum Wire Size 2/0 AWG Maximum Wire Size 2/0 AWG Number of Crimps 2 Overall Length 3.3 in Maximum Conductors 2 Maximum Operating Temperature 194 Degrees F RoHS Compliant Yes Seam Style Seamless Standards CSA Certified UL Listed Barrel Outside Diameter 0.56 inUlasan Produk
