Ideal Ballast-To-Luminaire Disconnect
#Grup produk P109694182
Sebelum PPN:
Rp1.299.900 - Rp37.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Color | Orange |
|---|---|
| Connection Type | Push-In |
| Contact Type | Plug to Socket; Socket to Plug |
| For Ballast Side Solid Wire Size - Min. (AWG) | 18 |
| For Conductor Material | Copper |
| For Line Side Solid Wire Size - Min. (AWG) | 18 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| RohS Compliant | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

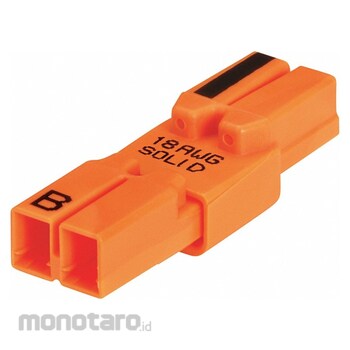

These ballast-to-luminaire disconnects have male and female connectors that plug into each other to create secure connections between ballasts and luminaires. Each connector has ports where the conductors insert and get held in place with an internal metal tab that splices the connection and prevents the wires from falling out.
Feature
Ballast Disconnect Color Orange Connection Type Push-In Contact Type Plug to Socket Socket to Plug For Ballast Side Solid Wire Size - Minimum 18 AWG For Ballast Side Solid Wire Size - Maximum 12 AWG Number of Ports - Ballast Side 2 For Line Side Solid Wire Size - Minimum 18 AWG For Line Side Solid Wire Size - Maximum 12 AWG Number of Ports - Line Side 2 For Conductor Material Copper Gender Male/Female Insulation Material Nylon Maximum Current 6 AUlasan Produk
