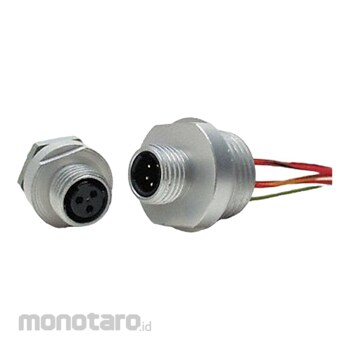

BRAD HARRISON Actuator & Sensor Receptacle
#Grup produk P109680055
Spesifikasi
| UNSPSC | 39121406 |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Length (ft) | 1 |
| End 1 Connection Type | 1/4 in |
| End 1 Mounting Orientation | Straight |
| End 1 Number of Pins | 4 |
| End 1 Thread (inch) | 1/4 -18 |
| End 2 Connection Type | Bare Wire |
| For use with | Control Panels; Junction Boxes and Sensors |
| IP Rating | IP67 |
| Maximum Current (A) | 4 |
| Maximum Voltage (V) | 250 AC; 250 DC |
| NEMA Rating | 6P |
| Number of wires | 4 |
| Standards | CSA Certified; UL Listed |
| Wire Size (AWG) | 22 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These actuator and sensor receptacles are compatible with M12 cordsets.
Feature
Receptacle with Leads End 1 Gender Male End 1 Thread 1/4 In.-18 End 1 Number of Pins 4 End 1 Mounting Orientation Straight End 1 Connection Type 1/4 in End 2 Connection Type Bare Wire Cable Length 1 ft Cable Jacket Color Black Cable Jacket Material PVC Max Amps 4 A Wire Size 22 AWG IP Rating IP67 Standards CSA Certified UL Listed NEMA Rating 6P End 1 Number of Keyways 2Ulasan Produk
