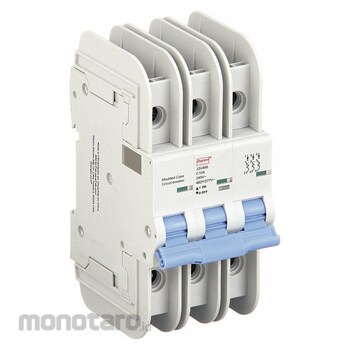

DAYTON 3-Pole, UL489 DIN Rail-Mount Miniature Circuit Breaker
#Grup produk P109677431
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp1.999.900 - Rp2.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| AC Voltage Rating (V) | 480 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Depth (inch) | 3 |
| Frame Size | 32A/NDB2T |
| Length (inch) | 4.01 |
| Max. AIR Rating (kA) | 10 at 480V AC |
| Meets UL Type | UL 489 |
| Number of Poles | 3 |
| Phase | 3 |
| Standards | UL Listed for US & Canada; CE |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
| Width (inch) | 2.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
B-curve three-pole miniature circuit breakers trip instantaneously when the current load exceeds three to five times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL489 listed for use as branch circuit protection or as supplementary protection from damage caused by overcurrents. They protect three circuits at the same time and are used when protection against low-level short circuit faults is desired, such as in PLC wiring, lighting, and appliances.
Feature
IEC Miniature Circuit Breaker Amps 10 A Number of Poles 3 Curve Type B AC Voltage Rating 480V AC DC Voltage Rating Not Rated Max AIR Rating 10kA at 480V AC Phase 3 Meets UL Type UL 489 Terminal Connection Lug Series NDB2T-63 B10/3 L Trip Type Thermal Magnetic Circuit Breaker Mounting Style DIN Rail Min Wire Size 16 AWG Max Wire Size 2 AWG Length 4.01 in Width 2.13 in Depth 3 in Frame Size 32A/NDB2T Circuit Breaker Actuator Toggle Standards UL Listed for US Canada CEDokumentasi Produk
