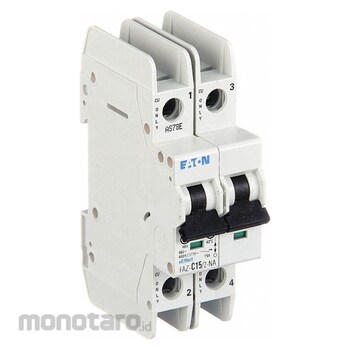

EATON 2-Pole, UL489 DIN Rail-Mount Miniature Circuit Breaker
#Grup produk P109676672
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| AC Voltage Rating (V) | 277/480 |
| Amps (A) | 15 |
| Application | Motor Control Circuits, Industrial Controls and Automation, Communication Equipment, Computers, Medical Equipment, Relays, UPS, HACR Equipment (Heating, Air Conditioning, Refrigeration) (Internal/External) |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Curve Type | C |
| DC Voltage Rating (VDC) | 48/96 |
| Depth (inch) | 4.13 |
| Frame Size | 40A/FAZ |
| Length (inch) | 1.4 |
| Max. AIR Rating (kA) | 14 at 277/480V AC |
| Max. Wire Size (AWG) | 6 |
| Maximum Operating Temperature (°F) | 140 |
| Meets UL Type | UL 489 |
| Min. Wire Size (AWG) | 18 |
| Minimum Operating Temperature (°F) | -4 |
| Number of Poles | 2 |
| Phase | 1 |
| Standards | CSA Certified; IEC 60947-2; UL 489 Listed |
| Terminal Connection | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Width (inch) | 2.97 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
C-curve two-pole miniature circuit breakers trip instantaneously when the current load exceeds five to ten times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL489 listed for use as branch circuit protection or as supplementary protection from damage caused by overcurrents. They protect two circuits at the same time and are used when protection against medium-level short circuit faults is desired, such as in control panels, lighting, and coils.
Feature
IEC Miniature Circuit Breaker Amps 15 A Number of Poles 2 Curve Type C AC Voltage Rating 277/480V AC DC Voltage Rating 48/96V DC Max AIR Rating 14kA at 277/480V AC Phase 1 Meets UL Type UL 489 Terminal Connection Screw Clamp Series FAZ-NA Trip Type Thermal Magnetic Circuit Breaker Mounting Style DIN RailUlasan Produk
