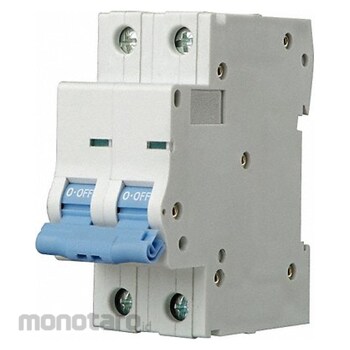

DAYTON 2-Pole, UL1077 DIN Rail-Mount Supplementary Protector
#Grup produk P109676511
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| AC Voltage Rating (V) | 480 |
| Application | Supplemental Protection |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Depth (inch) | 2.91 |
| Length (inch) | 3.21 |
| Max. AIR Rating (kA) | 7.5 at 480V AC |
| Meets UL Type | UL 1077 |
| Min. Wire Size (AWG) | 14 |
| Number of Poles | 2 |
| Phase | 1 |
| Standards | UL Recognized for US & Canada; CE |
| Terminal Connection | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Width (inch) | 1.42 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
C-curve two-pole supplementary protectors trip instantaneously when the current load exceeds five to ten times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. They protect two circuits at the same time and are used when protection against medium-level short circuit faults is desired, such as in control panels, lighting, and coils.
Feature
IEC Supplementary Protector Amps 32 A AC Voltage Rating 480V AC Max AIR Rating 7.5kA at 480V AC Series NDB2-63 C32/2 Curve Type C DC Voltage Rating Not Rated Number of Poles 2 Phase 1 Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style DIN Rail Meets UL Type UL 1077 Terminal Connection Screw Clamp Trip Type Thermal Magnetic Application Supplemental Protection Min Wire Size 14 AWG Max Wire Size 2 AWG Length 3.21 in Width 1.42 in Depth 2.91 inDokumentasi Produk
