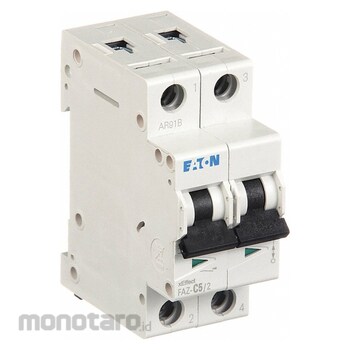

EATON 2-Pole, UL1077 DIN Rail-Mount Supplementary Protector
#Grup produk P109676496
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| AC Voltage Rating (V) | 277/480 |
| Amps (A) | 5 |
| Application | Appliances and Some Motors; Motors; Business Equipment; Control Circuits and Coils; PLC Wiring; Industrial; Lighting; Pilot Devices; Small Transformers; Transformers and Power Supplies |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Curve Type | C |
| DC Voltage Rating (VDC) | 96 |
| Depth (inch) | 1.38 |
| Length (inch) | 1.38 |
| Max. AIR Rating (kA) | 15 at 415V AC |
| Max. Wire Size (AWG) | 4 |
| Meets UL Type | UL 1077 |
| Min. Wire Size (AWG) | 18 |
| Number of Poles | 2 |
| Phase | 1 |
| Standards | CSA C22.2 No. 235; IEC 60947-2; UL 1077 |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
| Width (inch) | 1.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
C-curve two-pole supplementary protectors trip instantaneously when the current load exceeds five to ten times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. They protect two circuits at the same time and are used when protection against medium-level short circuit faults is desired, such as in control panels, lighting, and coils.
Feature
IEC Supplementary Protector Amps 5 A AC Voltage Rating 277/480V AC Max AIR Rating 15kA at 415V AC Series FAZ Curve Type C DC Voltage Rating 96V DC Number of Poles 2 Phase 1 Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style DIN Rail Meets UL Type UL 1077 Terminal Connection Lug Trip Type Thermal MagneticUlasan Produk
