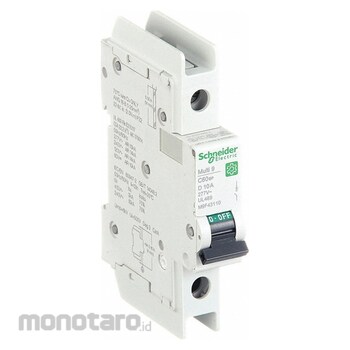

Schneider Electric 1-Pole, UL489 DIN Rail-Mount Miniature Circuit Breaker
#Grup produk P109676274
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp2.999.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| Application | Branch Circuit Protection |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| DC Voltage Rating (VDC) | 60 |
| Depth (inch) | 2.83 |
| Frame Size | 63A/C60BP |
| Length (inch) | 4.06 |
| Max. AIR Rating (kA) | 14 at 120/240V AC |
| Maximum Operating Temperature (°F) | 158 |
| Meets UL Type | UL 489 |
| Min. Wire Size (AWG) | 18 |
| Minimum Operating Temperature (°F) | -22 |
| Number of Poles | 1 |
| Phase | 1 |
| Terminal Connection | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Width (inch) | 0.71 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
D-curve one-pole miniature circuit breakers trip instantaneously when the current load exceeds ten to 20 times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL489 listed for use as branch circuit protection or as supplementary protection from damage caused by overcurrents. They're used when protection against high-level short circuit faults is desired, such as in motors, transformers, and power supplies.
Feature
IEC Miniature Circuit Breaker Amps 6 A Number of Poles 1 Curve Type D AC Voltage Rating 240/415V AC DC Voltage Rating 60V DC Max AIR Rating 14kA at 120/240V AC Phase 1 Meets UL Type UL 489 Terminal Connection Screw Clamp Series C60BP Trip Type Thermal Magnetic Circuit Breaker Mounting Style DIN Rail Application Branch Circuit Protection Min Wire Size 18 AWG Max Wire Size 8 AWG Length 4.06 in Width 0.71 in Depth 2.83 in Frame Size 63A/C60BP Circuit Breaker Actuator ToggleDokumentasi Produk
