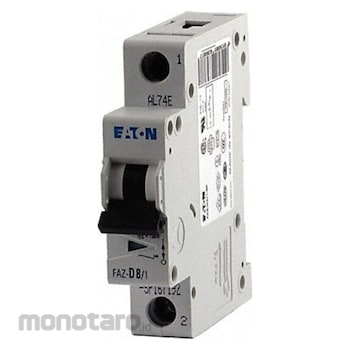

EATON 1-Pole, UL1077 DIN-Rail Mount Supplementary Protector
#Grup produk P109675673
Sebelum PPN:
Rp1.699.900 - Rp1.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| AC Voltage Rating (V) | 277/480 |
| Application | Appliances and Some Motors; Motors; Business Equipment; Control Circuits and Coils; PLC Wiring; Industrial; Lighting; Pilot Devices; Small Transformers; Transformers and Power Supplies |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| DC Voltage Rating (VDC) | 48 |
| Max. Wire Size (AWG) | 4 |
| Meets UL Type | UL 1077 |
| Min. Wire Size (AWG) | 18 |
| Number of Poles | 1 |
| Phase | 1 |
| Standards | CSA C22.2 No. 235; IEC 60947-2; UL 1077 |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
D-curve one-pole supplementary protectors trip instantaneously when the current load exceeds ten to 20 times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. They're used when protection against high-level short circuit faults is desired, such as in motors, transformers, and power supplies.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
IEC Supplementary Protector Amps 10 A AC Voltage Rating 277/480V AC Max AIR Rating 15kA at 240/415V AC Series FAZ Curve Type D DC Voltage Rating 48V DC Number of Poles 1 Phase 1 Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style DIN Rail Meets UL Type UL 1077 Terminal Connection Lug Trip Type Thermal MagneticUlasan Produk
