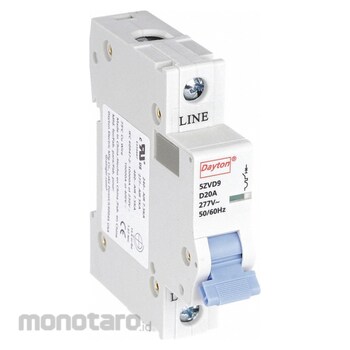

DAYTON 1-Pole, UL1077 DIN-Rail Mount Supplementary Protector
#Grup produk P109675558
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| Application | Supplemental Protection |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| DC Voltage Rating (VDC) | 220 |
| Depth (inch) | 2.91 |
| Length (inch) | 3.21 |
| Max. Wire Size (AWG) | 4 |
| Meets UL Type | UL 1077 |
| Min. Wire Size (AWG) | 14 |
| Number of Poles | 1 |
| Phase | 1 |
| Standards | CSA,TUV,CE; UL Listed |
| Terminal Connection | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Width (inch) | 0.71 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
D-curve one-pole supplementary protectors trip instantaneously when the current load exceeds ten to 20 times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. They're used when protection against high-level short circuit faults is desired, such as in motors, transformers, and power supplies.
Feature
IEC Supplementary Protector Amps 20 A AC Voltage Rating 277V AC Max AIR Rating 5kA at 277V AC Series NDB2-63 D20/1 Curve Type D DC Voltage Rating Not Rated Number of Poles 1 Phase 1 Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style DIN Rail Meets UL Type UL 1077 Terminal Connection Screw Clamp Trip Type Thermal Magnetic Application Supplemental Protection Min Wire Size 14 AWG Max Wire Size 4 AWG Length 3.21 in Width 0.71 in Depth 2.91 inUlasan Produk
