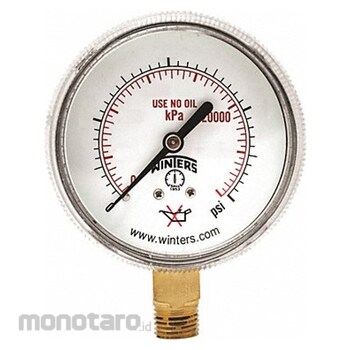

WINTERS Welding Regulator Pressure Gauge
#Grup produk P109675178
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid-Scale |
| Adjustable Pointer | No |
| Application | Beverage Dispensing Regulators; Down Stream Side of Regulator; High Pressure Side of Cylinder Gases; Other Pressurized Tanks; Welding Tank Regulators or Manifolds |
| Bezel Material | Polished Brass |
| Bezel Mounting Type | Threaded |
| Blowout Safety Back | No |
| Brand | WINTERS |
| Burst Pressure (psi) | 4000 |
| Case Color | Gold |
| Case Construction | Welded Joint |
| Case Depth (inch) | 1.14 |
| Case Diameter (inch) | 2.25 |
| Case Finish | Polished |
| Cleaned for Oxygen Service | No |
| Compatible Process Media | Bronze |
| Dial Color | White |
| Dial Face Material | Aluminium |
| Freeze Resistant Movement | No |
| Gauge Case Material | Brass |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP52 |
| Includes Mounting Hardware | No |
| Lens Material | Polycarbonate |
| Mounting Type | Stem-Mount |
| Movement Material | Brass |
| Nominal Dial Size (inch) | 2 |
| Non-Sparking | Yes |
| Operating Temperature Range Ambient (°F) | -40 to 150 |
| Over-Pressure Limit | 25% of Full Scale |
| Panel Mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Welding Regulator Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Scale Color | Black |
| Primary Scale Units | psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 150 |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Scale Color | Red |
| Secondary Scale Units | kPa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PWL |
| Socket Material | Brass |
| Standards | CRN Registered |
| Wetted Parts Material | Brass/Phosphor Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These non-sparking dial gauges are used with welding regulators and manifolds. They are designed for safety when used on welding fuels or in proximity to welding equipment. Gauges are compatible with many welding fuels and can be selected based on process connection size and location and pressure range. Select gauges are compatible with many welding fuels and can be purchased based on process connection and location and pressure range.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
K4562 Pressure Gauge 2 Dial Size BrassUlasan Produk
