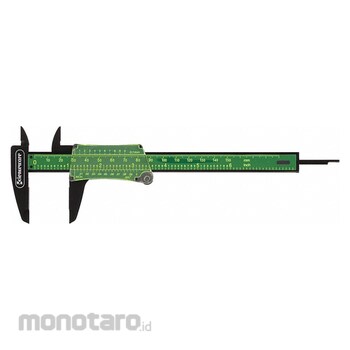

SP SCIENCEWARE Vernier Caliper & Compact Slide Caliper (Jangka Sorong)
#Grup produk P109674610
Spesifikasi
| UNSPSC | 41111621 |
|---|---|
| Brand | SP SCIENCEWARE |
| Caliper Material | Plastic |
| Depth Rod Shape | Round |
| Dimension Type | Inch/Metric |
| Graduations (mm) | 0.1 |
| Graduations - Lower Scale (inch) | 0.005 |
| Graduations - Upper Scale (mm) | 0.1 |
| Jaw Actuation Type | Thumb Wheel |
| Jaw Depth (inch) | 1-1/2 |
| Jaw Shape | Standard Jaw |
| Maximum Measurement (mm) | 150 |
| Maximum Measurement Decimal (inch) | 6 |
| Maximum Measurement Fractional (inch) | 6 |
| Measurements | 4-Way |
| Measures Depth | Yes |
| Measures Inside Dimension | Yes |
| Measures Outside Dimension | Yes |
| Measures Step | Yes |
| Minimum Measurement (mm) | 0 |
| Minimum Measurement - Decimal (inch) | 0 |
| Minimum Measurement - Fractional (inch) | 0 |
| Operation Type | Mechanical |
| Range (inch) | 0 to 6 |
| Range (mm) | 0 to 150 |
| With Locking Nut | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Vernier calipers have a fixed jaw paired with a sliding jaw that moves along a graduated scale to take inside and outside measurements. The jaws are used to contact the opposite sides of an object, workpiece, or feature. Operators read the main and vernier scales and add the values together to determine the reading. These calipers require expertise to read correctly.
Feature
4-Way Vernier Caliper Range 0 in to 6 in 0 mm to 150 mm Graduations 0.1 mm Caliper Material Plastic Dimension Type Inch/Metric Graduations - Lower Scale 0.005 in Graduations - Upper Scale 0.1 mm Jaw Actuation Type Thumb Wheel Jaw Depth 1 1/2 in Maximum Measurement - Decimal Inch 6 in Maximum Measurement - Fractional Inch 6 in Maximum Measurement - mm 150 mm Measurements 4-Way Measures Depth Yes Measures Inside Dimension Yes Measures Outside Dimension Yes Measures Step YesUlasan Produk
