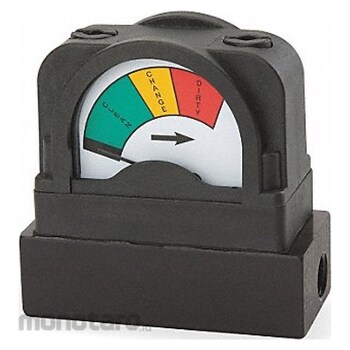

MIDWEST INSTRUMENT Tricolor Differential Pressure Indicator
#Grup produk P109674258
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±5.00% |
| Accuracy Details (psid) | ±5% (0-3.5 to 0-43) |
| Accuracy Grade | ASME B40.1 Grade D |
| Adjustable Set Points | No |
| Ambient Operating Temperature Range (°C) | -40 to 93 |
| Application | Filtration Monitoring; Line Loss; Valves |
| Brand | MIDWEST INSTRUMENT |
| Case Construction | Corrosion Resistant |
| Case Material | Glass Filled Nylon |
| Case Shape | Rectangle |
| Dial Color | Green-Yellow-Red |
| Hazardous Location Rating | Not Rated |
| Housing Material | Glass-Filled Nylon |
| IP/NEMA Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Lens Material | Plastic |
| Maximum Working Static Pressure (psig) | 300 |
| Nominal Dial Size (inch) | 3-1/4 |
| Operating Temperature Range Ambient (°F) | -40 to 200 |
| Panel Mountable | No |
| Pointer Characteristics | Magnetic Piston and Follower Pointer |
| Pressure Gauge Type | Differential Filter Indicator |
| Process Connection Gender | Female |
| Process Connection Location | End |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 200 |
| Rated Total Pressure (psi) | 300 |
| Removable Bezel | No |
| Seal Material | Buna-N |
| Sensor Material | Buna-N |
| Sensor Type | Diaphragm |
| Series | 555A |
| Standards | Certified Quality System CSA B51-09 SAI GLOBAL; CSA Listed; UL Listed |
| Wetted Parts Material | Stainless Steel/Ceramic/Glass-Filled Nylon |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These differential pressure indicators measure the difference in pressure between two points in a system. Also known as filter indicators, they have a tricolor dial range that indicates if the filter needs treatment or replacement.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
3-Color Differential Pressure Indicator Basic Gauge Case Material Metal Basic Gauge Wetted Parts Buna-N Differential Gauge Connection Type FNPT Differential Gauge Connection Size 1/4 in Gauge Connection Location Inline Differential Pressure Range Units psi Differential Pressure Range Value 0 to 25 Gauge Accuracy +/-5.00 Percent Body Material Glass Filled Nylon Diaphragm Material Buna-N Piston Material Magnetic Seal Material Buna-NUlasan Produk
