DIGI-STEM Threaded Thermocouple Prob
#Grup produk P109674072
Sebelum PPN:
Rp3.399.900 - Rp7.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112206 |
|---|---|
| Accuracy (°C) | ±1.1-277 |
| Accuracy (°F) | ±2-530 |
| Brand | DIGI-STEM |
| Connector Type | Bare Wire |
| Fitting Type | Compression |
| For Air | No |
| For Application | Liquid |
| For Gases | Yes |
| For Liquids and Gels | Yes |
| For Solids | No |
| For Surfaces | No |
| Head Connection (inch) | 1/2 NPT |
| Head Material | 316 Stainless Steel |
| Includes Thermowell | No |
| Maximum Temperature (°C) | 482 |
| Maximum Temperature (°F) | 900 |
| Minimum Temperature (°C) | -78 |
| Minimum Temperature (°F) | -109 |
| Probe Bend | Straight |
| Probe Diameter (inch) | 0.25 |
| Probe Sheath Material | 316 Stainless Steel |
| Probe Tip Diameter (inch) | 0.25 |
| Process Mounting (inch) | 1/2 NPT Compression |
| Response Time (s) | 30 to 60 |
| Sensor Type | Thermocouple |
| Temperature Range (°C) | -78 to 482 |
| Temperature Range (°F) | -109 to 900 |
| Thermocouple Type | Type K |
| Tip Style | Rounded |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

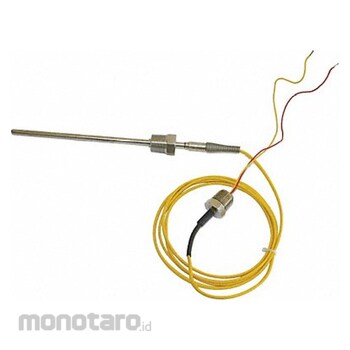

These thermocouples have a cable with bare lead wires that connect them with remote meters or monitoring systems. They have a thread-mounted sensor that’s used alone or paired with thermowells or protection tubes for fixed-installation applications. They are commonly used in general industrial and manufacturing environments to measure and monitor the temperature of liquids, gases, and air in tanks and pipes.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Thermocouple Probe Type K Ungrounded For Application Liquid 1/2 in NPT Compression Bare Wire Probe Size 1/4 in x 4 in Cable Length 12 ft -109 Degrees to 900 Degrees F/-78 Degrees to 482 Degrees C ThermocoupleUlasan Produk
