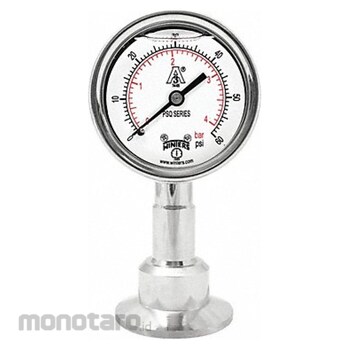

WINTERS Sanitary Pressure Gauge
#Grup produk P109672597
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±1.50% |
| Adjustable Pointer | Adjustable Micrometer Pointer |
| Application | Beverage |
| Bezel Material | 304 Stainless Steel |
| Blowout Safety Back | No |
| Brand | WINTERS |
| Case Color | Metallic |
| Case Depth (mm) | 32.4 |
| Case Diameter (mm) | 63.6 |
| Case Finish | Polished |
| Case Material | 304 Stainless Steel |
| Cleaned for Oxygen Service | No |
| Compatible Process Media | Air; Beverage; Dairy; Food; Gas; Liquid; Pasty or Powdery Media |
| Dial Color | White |
| Dial Face Material | Aluminium |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP65; NEMA 4X |
| Includes Calibration Certificate | No |
| Includes Vent Plug | No |
| Lens Material | Polycarbonate |
| Liquid-Filled Case | Yes |
| Mounting Type | Stem-Mount |
| Movement Material | 304 Stainless Steel |
| Nominal Dial Size (inch) | 2-1/2 |
| Operating Temperature Range Ambient (°F) | 40 to 150 |
| Over-Pressure Limit | 25% |
| Pointer Characteristics | Adjustable Micrometer Pointer |
| Pressure Gauge Type | Sanitary Pressure Gauge |
| Pressure Range Type | Pressure |
| Process Connection (inch) | 1-1/2 Tri-Clamp |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1-1/2 |
| Process Connection Type | Tri-Clamp |
| Process Temperature Range (°F) | 0 to 250 |
| Removable Bezel | No |
| Secondary Pressure Scale Color | Red |
| Secondary Scale Units | bar |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | PSQ |
| Socket Material | 316 Stainless Steel |
| Standards | 3A 74-06 Certified; CRN Registered; RoHS |
| Vibration Resistance | Liquid-Filled |
| Wetted Parts Material | 316 Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description
These dial 3-A certified sanitary gauges are mounted with a triclamp for quick clamping and removal in washdown environments. They are certified for the dairy industry, and select models have a liquid-filled case to dampen vibration and pulsation.
Feature
Pressure Gauge 2-1/2 Dial Size SilverUlasan Produk
