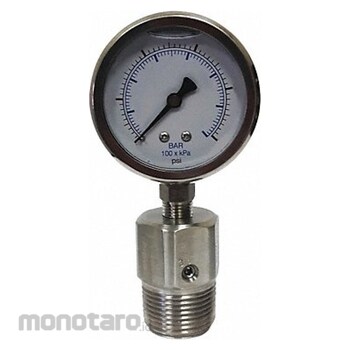

KODIAK Pressure Gauge with Diaphragm Seal for Challenging Media
#Grup produk P109672010
Spesifikasi
| UNSPSC | 23151820 |
|---|---|
| Accuracy | ±1.60% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Application | Chemical Industries; Highly Corrosive; Hydraulics; Pumps; R/O Systems |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Brand | KODIAK |
| Case Color | Stainless Steel |
| Case Construction | Corrosion Resistant |
| Case Depth (inch) | 1.28 |
| Case Diameter (inch) | 2.8 |
| Case Material | Stainless Steel |
| Cleaned for Oxygen Service | No |
| Clog Resistant | Yes |
| Compatible Process Media | Paints; Pastes; Syrups; Waste Water |
| Dial Color | White |
| Diaphragm Seal Process Connection | Threaded |
| Diaphragm Seal Type | Welded |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | 304 Stainless Steel |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | NEMA 4X |
| Includes | Mini Flush Diaphragm Seal |
| Includes Calibration Certificate | NIST with Data |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Lens Material | Polycarbonate |
| Liquid-Filled Case | Yes |
| Mounting Type | Stem-Mount |
| Nominal Dial Size (inch) | 2-1/2 |
| Operating Temperature Range Ambient (°F) | 20 to 160 |
| Panel Mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Industrial Pressure Gauge with Diaphragm Seal |
| Pressure Range Type | Pressure |
| Primary Scale Units | psi |
| Process Connection (inch) | 1/4 NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Dual |
| Seal Compatible Process Media | Air or Liquid Compatible with 316SS |
| Seal Connection Size (inch) | 1 |
| Seal Diaphragm Material | 316 Stainless Steel |
| Seal External Material | 316 Stainless Steel |
| Seal Fill Liquid | Mineral Oil |
| Seal Lower Housing Material | 316 Stainless Steel |
| Seal Maximum Working Pressure (psi) | 2500 |
| Seal Process Temperature Range (°F) | -40 to 328 |
| Secondary Pressure Scale Color | Blue |
| Secondary Scale Units | bar |
| Sensor Material | 316 Stainless Steel |
| Series | KC301; DSM35FLUSH |
| Socket Material | 316 Stainless Steel |
| Standards | NIST |
| Vibration Resistance | Liquid-Filled |
| Wetted Parts Material | 316 Stainless Steel/316 Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These gauges feature a male-threaded mini-isolator diaphragm seal that mounts to a female-threaded connection on a process. The diaphragm protects the gauge from damage and contamination and helps increase its life. They are often used in demanding applications with media like chemicals, wastewater, and wood pulp.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
K4225 Pressure Gauge Pressure 2-1/2 in 0 to 100 psi Connection Size 1 in MNPT Connection Location Bottom Smallest Graduation 2 psi Graduations 20 psi Accuracy 1.6 Percent Case Material 304 Stainless Steel Case Color Silver Socket Material 316 Stainless Steel Tube Material 316 Stainless Steel Filled With Glycerin Lens Material Plastic Ring Material Polished Stainless Steel Operating Temp Range -30 Degrees to 200 Degrees F Characteristics Heavy DutyUlasan Produk
