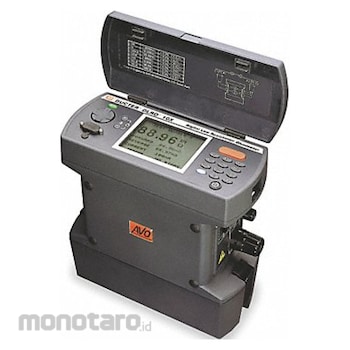

Megger Milli- & Micro-Ohm Meter
#Grup produk P109670836
Spesifikasi
| UNSPSC | 41113631 |
|---|---|
| Additional Features | Added Data Storage |
| Alert Type | Digital Display |
| Asset Tagging | No |
| Auto Ranging | Yes |
| Battery Chemistry | Nickel Metal Hydride |
| Bluetooth Compatible | No |
| Brand | MEGGER |
| CAT Safety Rating_PIM (V) | CAT III 600 |
| Calibration Certificate | Not Included |
| Communication Protocol | RS-232 |
| Display Screen Type | LED |
| Display Size (inch) | 4.5 |
| Display Type | Digital |
| Dustproof | Yes |
| Features | Accurate Results in Under Three Seconds; Automatically Detects Continuity in Potential and Current Connections; Visible Warning of High Voltages Present at the Terminals |
| IP Rating | IP54; IP65 |
| Includes | (2) DH4-C Duplex Handspikes; Battery Charger; Cigar Lighter Adapter; Lithium Ion Battery Module; Warranty Card |
| Includes Batteries | Yes |
| Input Impedance (kΩ) | 200 |
| Insulation Resistance Resolution (µΩ-miliΩ) | 0.1 to 100 |
| Low Resistance Range (µΩ) | 1.999 |
| Manufacturer Part Number | 1006-600 |
| Maximum Ground Resistance Measurement (ohm) | 2000 |
| Maximum Insulation Resistance (ohm) | 1999.9 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Ground Resistance Measurement (µΩ) | 0.1 |
| Minimum Insulation Resistance (µΩ) | 1.999 |
| Minimum Operating Temperature (°F) | 14 |
| Number of Batteries Required | 1 |
| Number of Digits | 4 |
| Number of Records Stored | 700 |
| Operating Voltage (V) | 600 |
| Power Source | Battery |
| Remote Control Compatible | No |
| Resistance Accuracy | ±0.20% |
| Sub Brand | DLRO |
| Test Current (A) | 10 |
| Test Lead Length (ft) | 4 |
| Tester Type | Micro Ohmmeter |
| Testing Functions | Low Resistance |
| Tool Height (inch) | 8.7 in |
| Tool Length (inch) | 9.3 in |
| Tool Width (inch) | 3.9 in |
| USB Data Download Included | No |
| Waterproof | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Milli- and micro-ohmmeters send voltage pulses through parts and equipment to detect electrical resistance levels below a single ohm to identify insulation leaks and shorts. Also called low-resistance ohmmeters, these portable, compact instruments use four test leads to contact test objects and help electricians, operators, and facility maintenance crews identify and diagnose problems and prevent permanent damage to electrical systems. They are often used for indoor or outdoor testing of circuit breakers, ground bonds, motors, coils, and switches. Additional uses include testing applications in chemical plants, mines, railroads, telecommunications, and automotive and aircraft industries.
Feature
Micro Ohmmeter Communication Protocol RS-232 Insulation Resistance Resolution 0.1 microohm to 100 milliohm Maximum Insulation Resistance 2 kiloohm Minimum Insulation Resistance 1.999 microohm Number of Digits 4 Power Source NiMH Battery Includes (2) 4 ft DH4 Duplex Handspikes Automotive Charger and User Guide Battery Battery ChargerUlasan Produk
