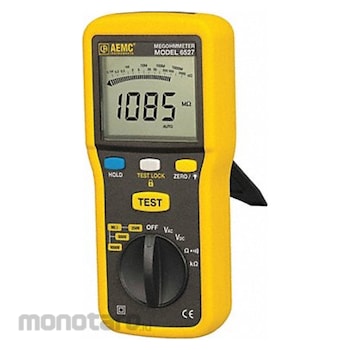

AEMC INSTRUMENTS Megohmmeter
#Grup produk P109670739
Spesifikasi
| UNSPSC | 41113628 |
|---|---|
| Auto Power OFF | Yes |
| Auto Ranging | Yes |
| Backlit Digital Display | Yes |
| Battery Chemistry | Alkaline |
| Battery Size | AA |
| Bluetooth Compatible | No |
| Brand | AEMC INSTRUMENTS |
| CAT Safety Rating (V) | CAT IV 600 |
| Calibration Certificate | Not Included |
| Capacitance Auto Discharge | Yes |
| Data logger | No |
| Display Screen Type | LCD with Backlight |
| Display Type | Digital |
| Dustproof | Yes |
| IP Rating | IP51 |
| Includes | (2) Sets of 5 ft Color-Coded Test Leads with Alligator Clips (Red/Black)Black Test ProbeSoft Carrying Case |
| Includes Batteries | Yes |
| Includes Software | No |
| Input Impedance (MΩ) | 10 |
| Insulation Resistance Range (kΩ-GΩ) | 1 to 4 |
| Insulation Resistance Resolution (ohm) | 4 |
| Leakage Current Range (mA) | 0 to 5.50 |
| Manufacturer Part Number | 6527 |
| Maximum AC Voltage Measured (V) | 600 |
| Maximum DC Voltage Measured (V) | 1000 |
| Maximum Insulation Resistance (GΩ) | 4 |
| Maximum Operating Temperature (°F) | 90 |
| Megohmmeter Features | Standard |
| Minimum Insulation Resistance (kΩ) | 1 |
| Minimum Operating Temperature (°F) | 32 |
| Number of Batteries Required | 6 |
| Operating Voltage (V AC) | 600 |
| PI/DAR Testing | Yes |
| Parameters Measured | Insulation Resistance |
| Power Source | Battery |
| Resistance Accuracy | ±1.20% +3 digits |
| Standards | CE; EN 61010-1 |
| Sub Brand | Megohmmeter |
| Test Current (mA) | 250 |
| Test Voltage (VDC) | 250, 500, 1,000 |
| Testing Functions | Insulation |
| Tool Height (inch) | 2 in |
| Tool Length (inch) | 7.9 in |
| Tool Width (inch) | 3.6 in |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Standard megohmmeters are commonly used by electricians and technicians to test for basic insulation leaks in motors, generators, transformers, and switchgears.
Feature
Megohmmeter Backlit Digital Display Yes Bluetooth Compatible No CAT Safety Rating CAT IV 600V Capacitance Auto Discharge Yes Display Type Digital Dustproof Yes Includes Black Test Probe (2) Sets of 5 ft Color-Coded Test Leads with Alligator Clips (Red/Black) Soft Carrying Case Maximum Insulation Resistance 4 gigohm Minimum Insulation Resistance 1 kiloohm PI/DAR Testing Yes Parameters Measured Insulation Resistance Power Source Battery Resistance Accuracy +/-1.20 Percent +3 digitsUlasan Produk
