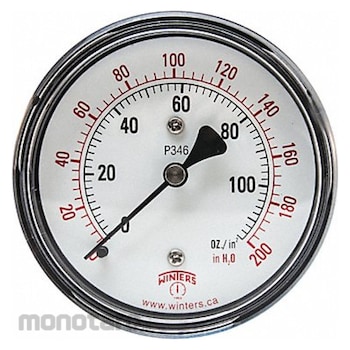

WINTERS Low Pressure Gauge
#Grup produk P109670517
Spesifikasi
| Accuracy | ±3-2-3% |
|---|---|
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid-Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range (°C) | -40 to 65 |
| Bezel Mounting Type | No Bezel |
| Brand | WINTERS |
| Case Color | Black |
| Case Depth (inch) | 1.9 |
| Case Diameter (inch) | 2.625 |
| Case Finish | Painted |
| Case Material | Steel |
| Cleaned for Oxygen Service | No |
| Compatible Process Media | Gaseous |
| Dial Color | White |
| Dial Face Material | Aluminium |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B - Commercial |
| Gauge Application | For Natural Gas & Other Gases |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Wetted Parts | Brass / Bronze |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP52 |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-Filled Case | No |
| Mounting Type | Stem-Mount |
| Nominal Dial Size (inch) | 2-1/2 |
| Operating Temperature Range Ambient (°F) | -40 to 150 |
| Over-Pressure Limit | 30% of Full Scale |
| Panel Mountable | No |
| Pointer Characteristics | Aluminium, Anodized Black |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Low Pressure Gauge |
| Process Connection (inch) | 1/4 NPT Male |
| Process Connection Gender | Male |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 150 |
| Removable Bezel | No |
| Scale Type | Dual |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Diaphragm |
| Series | PLP |
| Socket Material | Brass |
| Standards | CRN Registered |
| Vibration Resistance | None |
| Wetted Parts Material | Brass/Phosphor Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These pressure gauges have a highly-sensitive diaphragm sensor that"™s suitable for natural gas and other noncorrosive gases.
Feature
K4544 Pressure Gauge Gauge Type Low Pressure Dial Size (In.) 2-1/2 Range 0 to 15 WC Connection Size 1/4 NPT Connection Location Lower Graduations 0.2 WC Accuracy (%) +/-1 Case Material Glass Filled Polysulfone Case Color Black Socket Material Brass Tube Material Beryllium Copper Lens Material Polycarbonate Operating Temp Range (F) -4 Degrees to 140 Degrees Series 1490A Manufacturers Warranty Length 1 YearUlasan Produk
