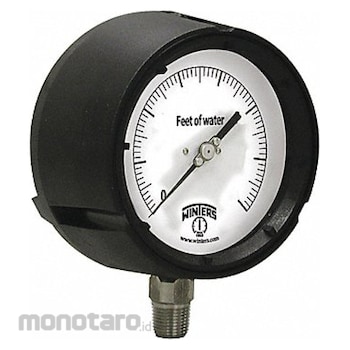

WINTERS Liquid-Level Altitude Pressure Gauge
#Grup produk P109670410
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±0.50% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Application | Altitude |
| Blowout Safety Back | No |
| Brand | WINTERS |
| Case Color | Black |
| Case Material | Aluminium |
| Dial Color | White |
| Freeze Resistant Movement | No |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | Not Rated |
| Includes Mounting Hardware | No |
| Lens Material | Glass |
| Manufacturer Part Number | PAL6083ALT-STAT |
| Mounting Type | Stem-Mount |
| Nominal Dial Size (inch) | 6 |
| Operating Temperature Range Ambient (°F) | -40 to 150 |
| Panel Mountable | No |
| Pressure Gauge Type | Altitude Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 35 |
| Primary Scale Units | ft wc |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°C) | -40 to 65 |
| Process Temperature Range (°F) | -40 to 150 |
| Reads Head Pressure | Yes |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Brass |
| Sensor Type | Bourdon Tube |
| Series | PAL |
| Socket Material | Brass |
| Standards | CRN Registered |
| Wetted Parts Material | Brass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Also known as altitude gauges and liquid- or tank-level pressure gauges, these gauges read head pressure in ft. wc (feet water column) or ft. H20 units. They are commonly used in tanks, standpipes, and other applications where water depth must be gauged.
Feature
