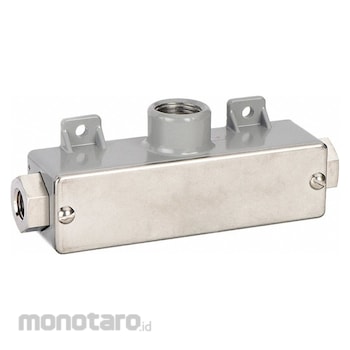

Dwyer Liquid Media Differential Pressure Transmitter
#Grup produk P109670331
Spesifikasi
| UNSPSC | 41111938 |
|---|---|
| Accuracy | ±0.50% of Full Scale |
| Brand | DWYER |
| Electrical Connections | Screw Terminals |
| Enclosure Rating | IP66 ; NEMA 4X |
| Housing Material | Cast Aluminium |
| IP Rating | IP66 |
| Maximum Loop Resistance (ohm) | 1250 |
| Maximum Operating Temperature (°F) | 200 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Pressure (PSID) | 0 |
| NEMA Rating | NEMA 4X |
| NIST Traceable Certificate | No |
| Number of wires | 2 |
| Output | 4 to 20mA DC (2-Wire); 0 to 5V DC; 1 to 5V DC; 0 to 10V DC; 2 to 10V DC (3-Wire) |
| Overall Height (inch) | 3.109 in |
| Overall Length (inch) | 5.937 |
| Overall Width (inch) | 1.968 |
| Power Required (VDC) | 10 to 35 |
| Pressure Units | psid |
| Process Connection Gender | Female |
| Process Connection Type | NPT |
| Product Type | Wet/Wet - No Manifold |
| Response Time (msec) | 400 |
| Series | 629C |
| Standards | CE; RoHS |
| Thermal Error | ±0.04% |
| Weight (oz) | 10.1 |
| Wetted Materials | 316 Stainless Steel; 316L Stainless Steel |
| Wiring Entry (inch) | 1/2 FNPT Conduit Connection |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These liquid-media differential pressure transmitters convert pressure produced between two points in a process into electrical output signals. These output signals control and monitor applications remotely and can be displayed with a compatible monitoring device. These instruments are built with a simplified dual-sensor with fewer moving parts and less internal fluid for better response times than units with manifolds. They are commonly used to monitor flow elements, heat exchangers, filters, coils, and pumps.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Differential Transmitter Output 4 to 20mA DC (2-Wire) 0 to 5V DC 1 to 5V DC 0 to 10V DC 2 to 10V DC (3-Wire) Minimum Pressure 0 psid Maximum Pressure 50 psid Overpressure 250 psi Accuracy +/-0.50 Percent of Full Scale Number of Wires 2 Process Connection Gender Female Process Connection Size 1/8 in Process Connection Type NPT Power Required 10 to 35V DC IP Rating IP66 NEMA Rating NEMA 4X Series 629C Housing Material Cast Aluminum Electrical Connections Screw TerminalsUlasan Produk
